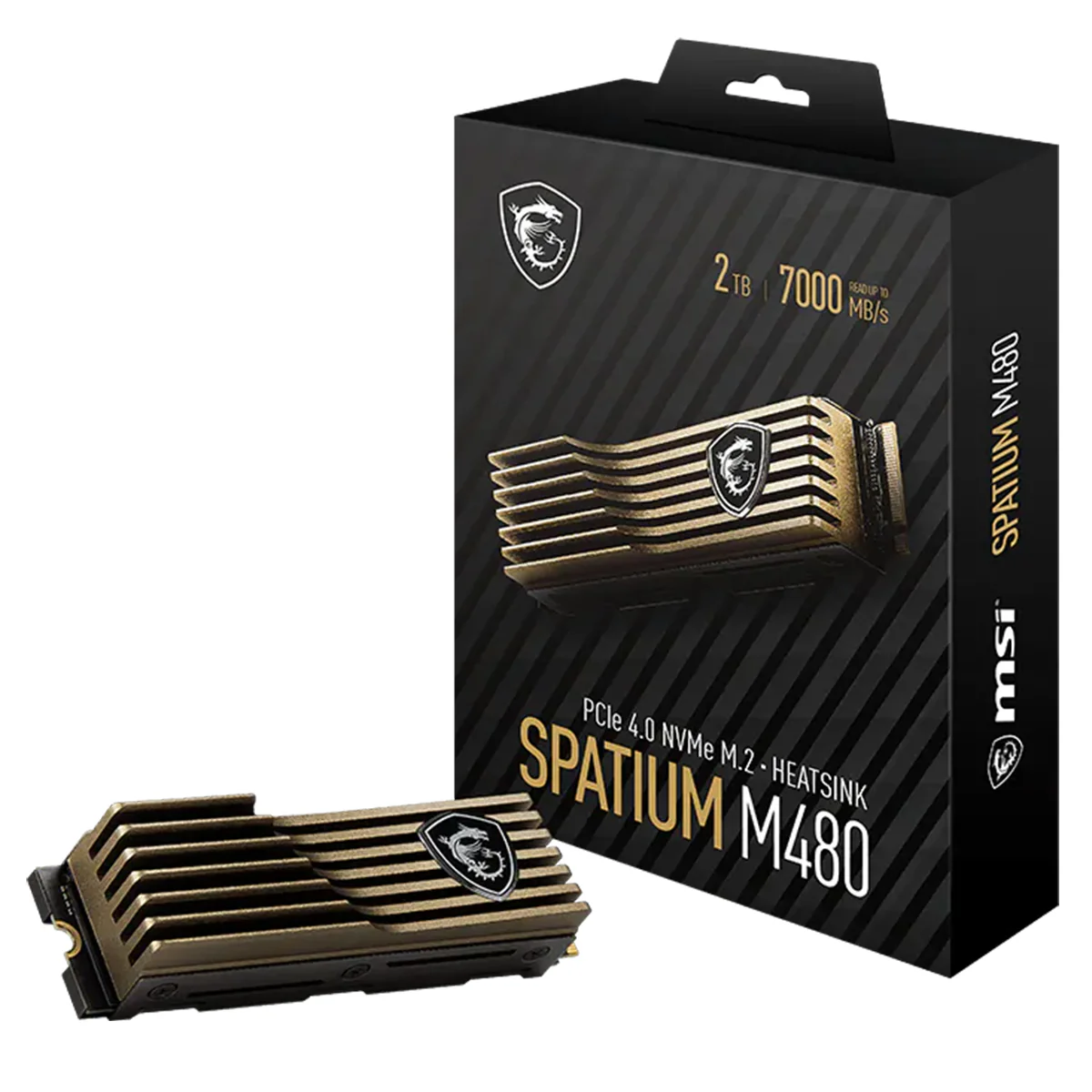

MSI Spatium M480 with Heatsink 2TB M.2 2280 7000MB/s Read PCIe 4.0 x4 NVMe SSD
CHARGING AHEAD WITH SPEED
From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.
A Need for Speed!
Optimized for the PCIe Gen4 interface, SPATIUM M480 SSD reaches read/write speeds up to 7000/6800 MB/s, allowing for rapid data transfer and shortened game load times.

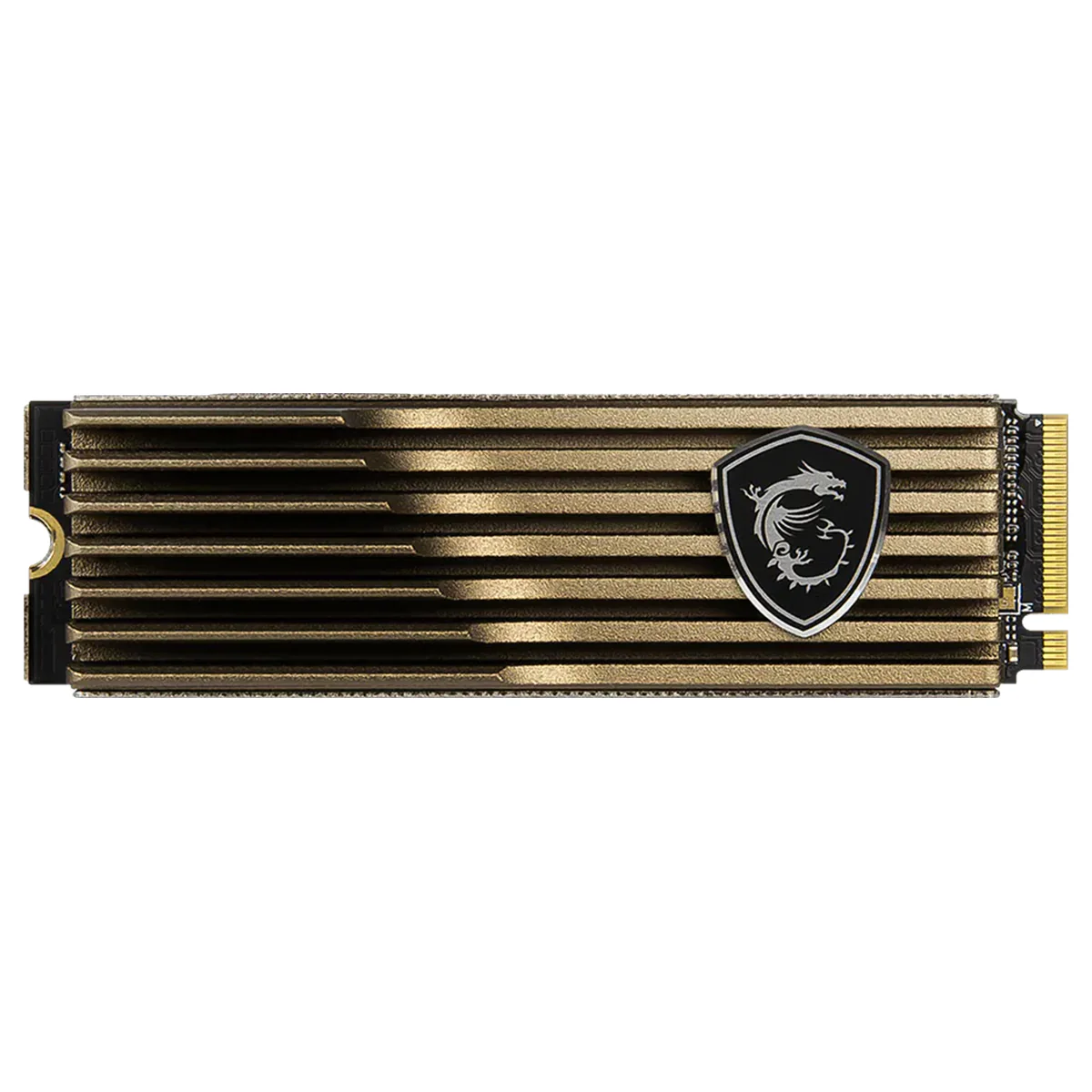

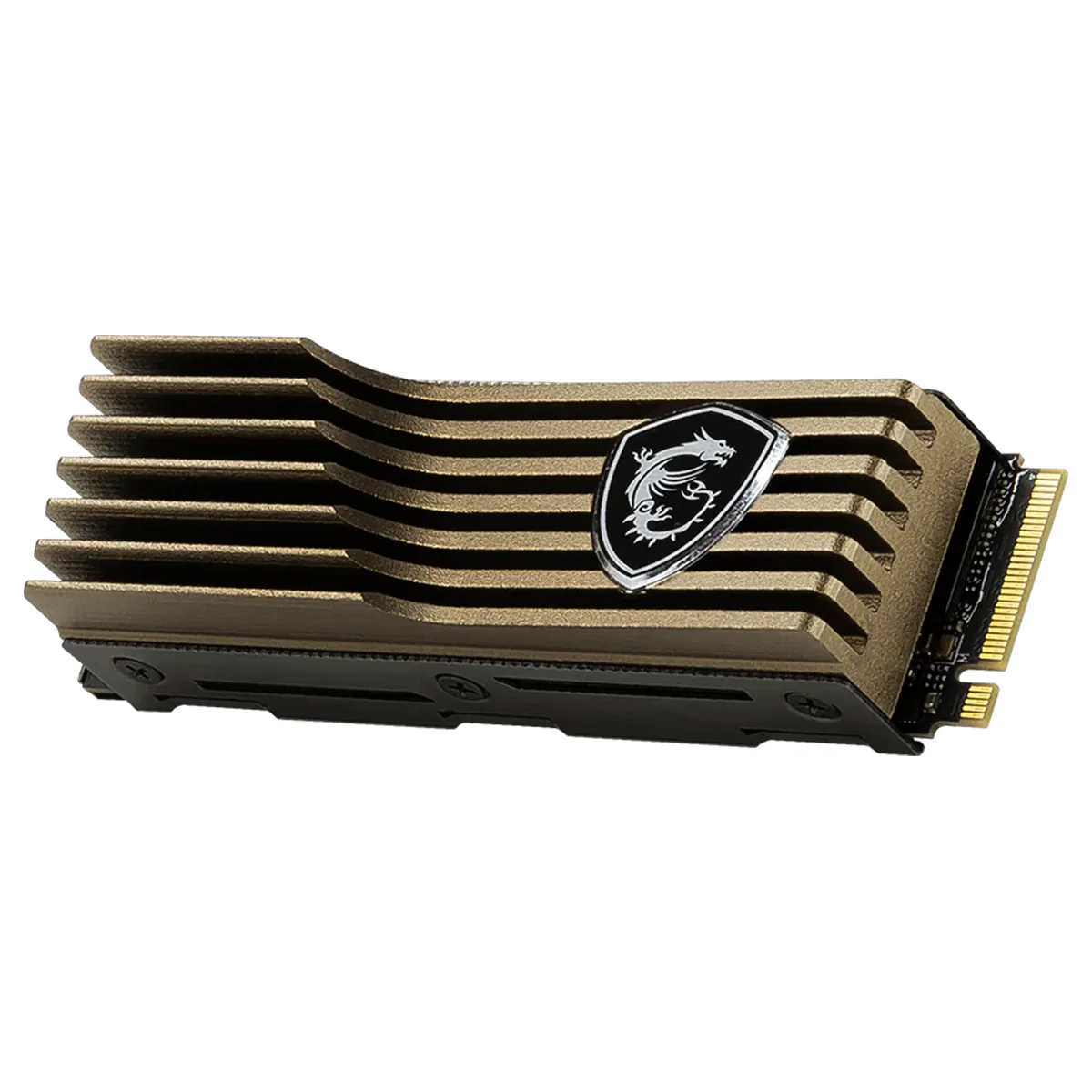

Aluminum Heatsink
SPATIUM M480 sports a gorgeous bronze-colored aluminum heatsink with a stacked fin structure that efficiently dissipates heat and allows the SSD to sustain maximum performance under heavy load.*Disclaimer: Performance may vary based on system hardware & software configuration.
Small Size, More Storage
The latest 3D NAND flash technology brings dense storage in a compact design and allows SPATIUM storage capacities up to 2TB.
Fulfill Unlimited Potential
Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage, empowering you to break records in games or take your talents to the next level.
With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.
Specifications:
| Capacity | 2TB |
| Controller | PHISON E18 |
| Flash Memory | 3D NAND |
| DRAM Cache | 2GB DDR4 |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen4x4, NVMe 1.4 |
| Compatibility | PCIe Gen4 / Gen3 / Gen2 / Gen1 |
| Dimensions | 80.00mm (L) x 22.00mm (W) x 2.15mm (H) (w/o heatsink) 80.40mm (L) x 23.00mm (W) x 20.40mm (H) (w/ heatsink) |
| Sequential Read up to (MB/s) | 7000 |
| Sequential Write up to (MB/s) | 6800 |
| Random Read 4KB up to (IOPS) | 650,000 |
| Random Write 4KB up to (IOPS) | 700,000 |
| Maximum Operating Power (W) | 8.2 |
| Idle Power PS3 (mW) | 22 |
| Low Power L1.2 (mW) | 3 |
| Operating Temperatures | 0°C – 70°C |
| Storage Temperatures | -40°C – 85°C |
| Terabytes Written (TBW) | 1400 |
| Mean Time Between Failure (MTBF) | Up to 1,600,000 Hours |
| Advanced Features | TRIM (Performance Optimization, OS support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) AES256/Pyrite (Encryption, Data Security) |
CHARGING AHEAD WITH SPEED
From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.
A Need for Speed!
Optimized for the PCIe Gen4 interface, SPATIUM M480 SSD reaches read/write speeds up to 7000/6800 MB/s, allowing for rapid data transfer and shortened game load times.
Aluminum Heatsink
SPATIUM M480 sports a gorgeous bronze-colored aluminum heatsink with a stacked fin structure that efficiently dissipates heat and allows the SSD to sustain maximum performance under heavy load.*Disclaimer: Performance may vary based on system hardware & software configuration.
Small Size, More Storage
The latest 3D NAND flash technology brings dense storage in a compact design and allows SPATIUM storage capacities up to 2TB.
Fulfill Unlimited Potential
Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage, empowering you to break records in games or take your talents to the next level.
With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.
Specifications:
| Capacity | 2TB |
| Controller | PHISON E18 |
| Flash Memory | 3D NAND |
| DRAM Cache | 2GB DDR4 |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen4x4, NVMe 1.4 |
| Compatibility | PCIe Gen4 / Gen3 / Gen2 / Gen1 |
| Dimensions | 80.00mm (L) x 22.00mm (W) x 2.15mm (H) (w/o heatsink) 80.40mm (L) x 23.00mm (W) x 20.40mm (H) (w/ heatsink) |
| Sequential Read up to (MB/s) | 7000 |
| Sequential Write up to (MB/s) | 6800 |
| Random Read 4KB up to (IOPS) | 650,000 |
| Random Write 4KB up to (IOPS) | 700,000 |
| Maximum Operating Power (W) | 8.2 |
| Idle Power PS3 (mW) | 22 |
| Low Power L1.2 (mW) | 3 |
| Operating Temperatures | 0°C – 70°C |
| Storage Temperatures | -40°C – 85°C |
| Terabytes Written (TBW) | 1400 |
| Mean Time Between Failure (MTBF) | Up to 1,600,000 Hours |
| Advanced Features | TRIM (Performance Optimization, OS support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) AES256/Pyrite (Encryption, Data Security) |
Original: $308.18
-70%$308.18
$92.45Description
