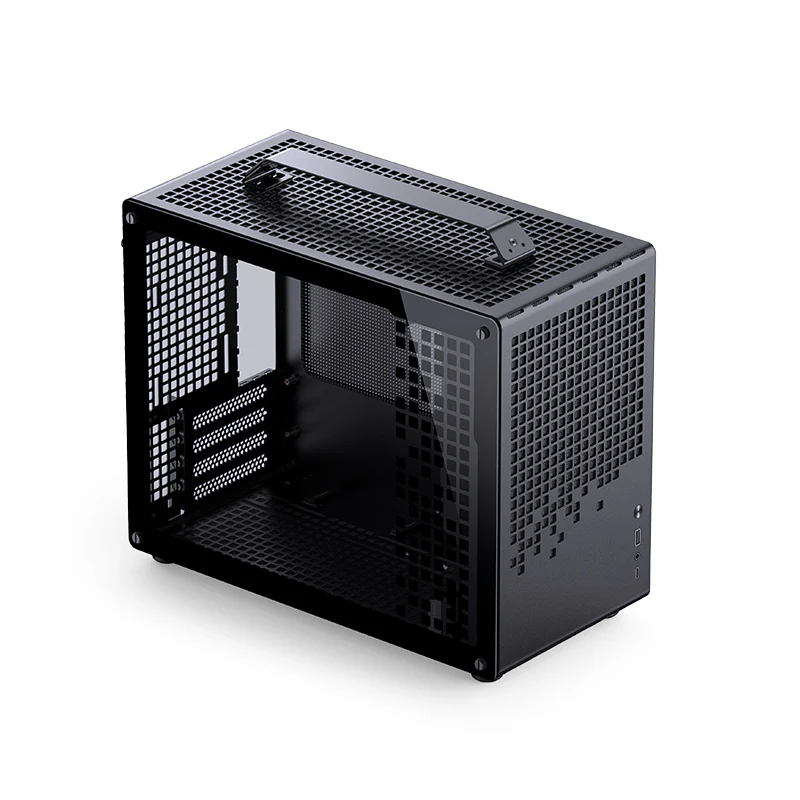

Jonsbo Z20 M-ATX Computer Case (Black, Orange/Black, Pink/White, White)
Z20 Tempered Glass Version Black
High-performance hardware compatibility / compact design
● Main body dimensions 370mm*186mm*295mm (length/width/height, excluding handles/feet and other protrusions), only about 20L in volume
● Frame integrated bending, with plate thickness up to 2mm / Equipped with removable portable handle
● Compatible with a 60mm thickness (30mm radiator + fan) performance grade 240 water cooler or 164mm(Intel CPU)or 163mm(AMD CPU) dual-tower air cooler
● Supports high-performance graphics cards up to 363mm in length & full-size Micro-ATX motherboards
● In air-cooled mode, supports ATX power supplies at least 15cm in length; in water-cooled mode, supports ATX power supplies at least 14cm in length
● Optimized installation experience design: flexible and variable hardware combinations within a small space



- Z20 BlackV1.0
- DIMENSIONS(w/o handle/feet and other protrusions):370mm x 186mm x 295mm(depth/width/height)
- DIMENSIONS(with handle/feet and other protrusions):382mm x 198mm x 335mm(depth/width/height)
- Motherboard Support:Mini-ITX / Micro-ATX
- Expansion Slots:4
- Case Material:SPCC Steel, Tempered Glass
- Weight:N.W. 5kg / G.W. 6.5kg
- CPU Air Cooler Clearance:164mm MAX(Intel CPU)or 163mm MAX(AMD CPU)
- Radiator Clearance:Top,up to 240mm
- GPU Clearance:Up to 363mm, depends on other hardware configurations (Refer to page 11)
- ATX PS2 PSU Clearance:Up to 180mm, recommended length ≤140mm,depends on other hardware configurations (Refer to page 11)
- SFX PSU Support:SFX / SFX-L
- USB 3.2 Gen 1 Type-A:1
- USB 3.2 Gen 2 Type-C:1
- Headset Audio Jack:1
- 2.5":up to 3,depends on other hardware configurations
- 3.5":up to 1,depends on other hardware configurations
- Top:2 x 120mm / 2 x 140mm
- Rear:1 x 120mm / 1 x 92mm
- Bottom:2 x 120mm / 2 x 140mm,depends on other hardware configurations
Z20 Tempered Glass Version Black
High-performance hardware compatibility / compact design
● Main body dimensions 370mm*186mm*295mm (length/width/height, excluding handles/feet and other protrusions), only about 20L in volume
● Frame integrated bending, with plate thickness up to 2mm / Equipped with removable portable handle
● Compatible with a 60mm thickness (30mm radiator + fan) performance grade 240 water cooler or 164mm(Intel CPU)or 163mm(AMD CPU) dual-tower air cooler
● Supports high-performance graphics cards up to 363mm in length & full-size Micro-ATX motherboards
● In air-cooled mode, supports ATX power supplies at least 15cm in length; in water-cooled mode, supports ATX power supplies at least 14cm in length
● Optimized installation experience design: flexible and variable hardware combinations within a small space



- Z20 BlackV1.0
- DIMENSIONS(w/o handle/feet and other protrusions):370mm x 186mm x 295mm(depth/width/height)
- DIMENSIONS(with handle/feet and other protrusions):382mm x 198mm x 335mm(depth/width/height)
- Motherboard Support:Mini-ITX / Micro-ATX
- Expansion Slots:4
- Case Material:SPCC Steel, Tempered Glass
- Weight:N.W. 5kg / G.W. 6.5kg
- CPU Air Cooler Clearance:164mm MAX(Intel CPU)or 163mm MAX(AMD CPU)
- Radiator Clearance:Top,up to 240mm
- GPU Clearance:Up to 363mm, depends on other hardware configurations (Refer to page 11)
- ATX PS2 PSU Clearance:Up to 180mm, recommended length ≤140mm,depends on other hardware configurations (Refer to page 11)
- SFX PSU Support:SFX / SFX-L
- USB 3.2 Gen 1 Type-A:1
- USB 3.2 Gen 2 Type-C:1
- Headset Audio Jack:1
- 2.5":up to 3,depends on other hardware configurations
- 3.5":up to 1,depends on other hardware configurations
- Top:2 x 120mm / 2 x 140mm
- Rear:1 x 120mm / 1 x 92mm
- Bottom:2 x 120mm / 2 x 140mm,depends on other hardware configurations
Original: $56.84
-70%$56.84
$17.05Description
Z20 Tempered Glass Version Black
High-performance hardware compatibility / compact design
● Main body dimensions 370mm*186mm*295mm (length/width/height, excluding handles/feet and other protrusions), only about 20L in volume
● Frame integrated bending, with plate thickness up to 2mm / Equipped with removable portable handle
● Compatible with a 60mm thickness (30mm radiator + fan) performance grade 240 water cooler or 164mm(Intel CPU)or 163mm(AMD CPU) dual-tower air cooler
● Supports high-performance graphics cards up to 363mm in length & full-size Micro-ATX motherboards
● In air-cooled mode, supports ATX power supplies at least 15cm in length; in water-cooled mode, supports ATX power supplies at least 14cm in length
● Optimized installation experience design: flexible and variable hardware combinations within a small space



- Z20 BlackV1.0
- DIMENSIONS(w/o handle/feet and other protrusions):370mm x 186mm x 295mm(depth/width/height)
- DIMENSIONS(with handle/feet and other protrusions):382mm x 198mm x 335mm(depth/width/height)
- Motherboard Support:Mini-ITX / Micro-ATX
- Expansion Slots:4
- Case Material:SPCC Steel, Tempered Glass
- Weight:N.W. 5kg / G.W. 6.5kg
- CPU Air Cooler Clearance:164mm MAX(Intel CPU)or 163mm MAX(AMD CPU)
- Radiator Clearance:Top,up to 240mm
- GPU Clearance:Up to 363mm, depends on other hardware configurations (Refer to page 11)
- ATX PS2 PSU Clearance:Up to 180mm, recommended length ≤140mm,depends on other hardware configurations (Refer to page 11)
- SFX PSU Support:SFX / SFX-L
- USB 3.2 Gen 1 Type-A:1
- USB 3.2 Gen 2 Type-C:1
- Headset Audio Jack:1
- 2.5":up to 3,depends on other hardware configurations
- 3.5":up to 1,depends on other hardware configurations
- Top:2 x 120mm / 2 x 140mm
- Rear:1 x 120mm / 1 x 92mm
- Bottom:2 x 120mm / 2 x 140mm,depends on other hardware configurations
