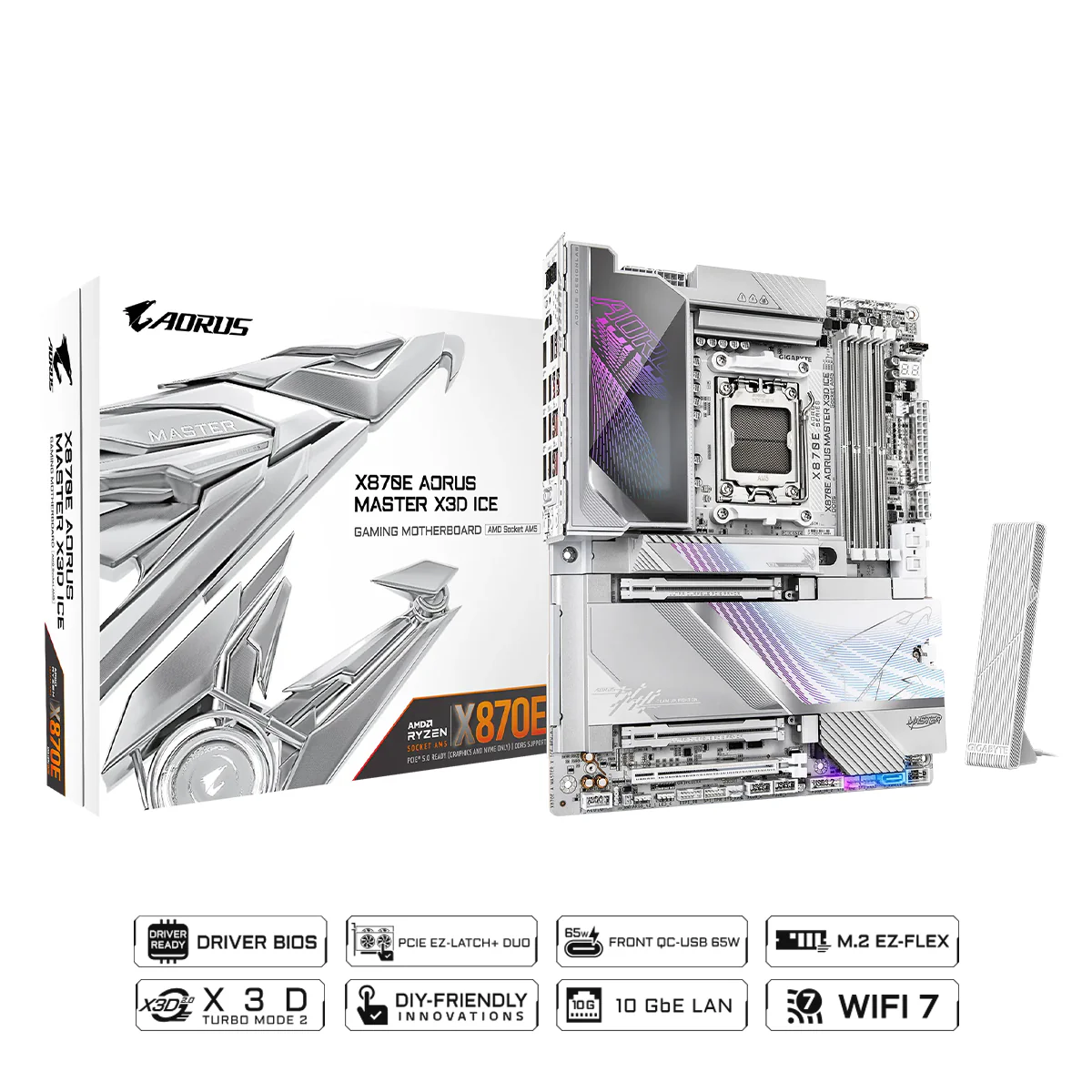

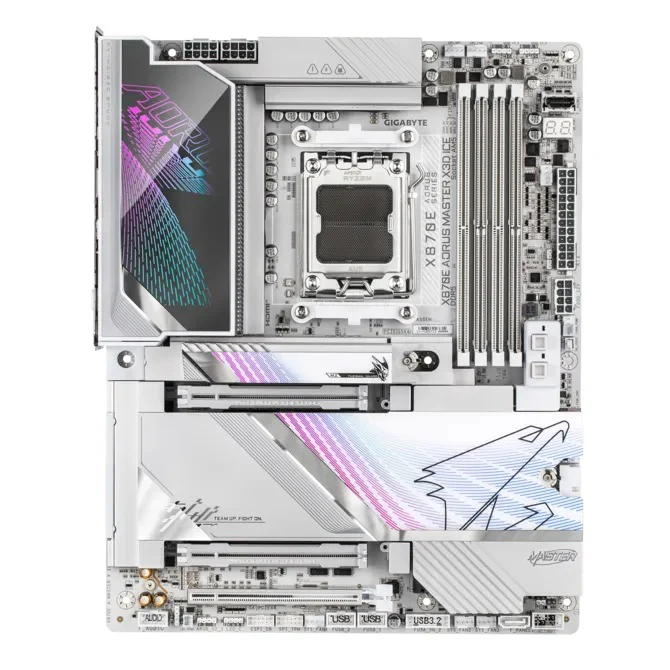

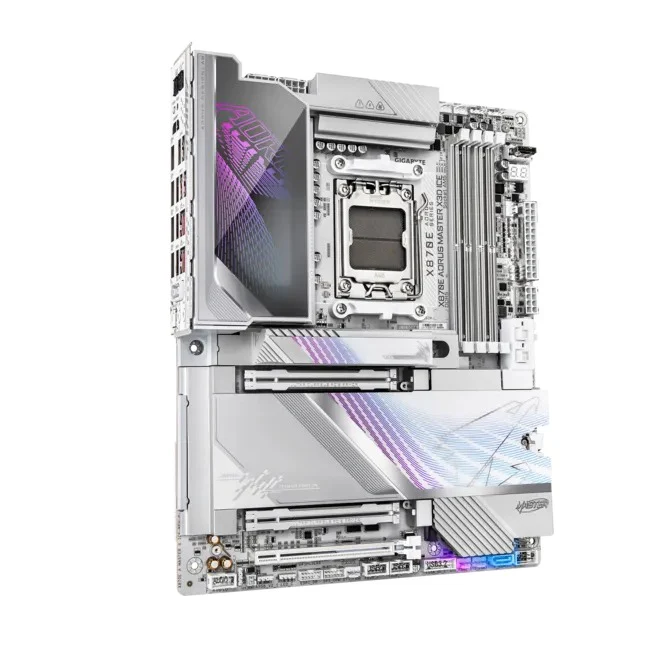

Gigabyte X870E Aorus Master X3D Ice DDR5 AMD Gaming Motherboard
Specifications:
| Category | Specifications |
|---|---|
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870E |
| Memory | Support for DDR5 up to 9000(O.C) MT/s; 4 x DDR5 DIMM sockets (up to 256 GB); Dual channel; Support for AMD EXPO™ and XMP modules |
| Onboard Graphics | 2 x USB4® USB Type-C® (3840x2160@240 Hz); 1 x HDMI 2.1 (4096x2160@60 Hz); 1 x internal HDMI (1920x1080@30 Hz) |
| Audio | Realtek® ALC1220 CODEC; ESS ES9118 DAC chip; DTS:X® Ultra; 2/4/5.1-channel; S/PDIF Out |
| LAN | 1 x Realtek® 5GbE LAN (LAN1); 1 x Realtek® 10GbE LAN (LAN2) |
| Wireless Communication | MediaTek Wi-Fi 7 MT7927, RZ738; 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz); Bluetooth 5.4 |
| Expansion Slots | 1 x PCIe 5.0 x16 (PCIEX16); 1 x PCIe 5.0 x8 (PCIEX8); 1 x PCIe 4.0 x4 (PCIEX4) |
| Storage Interface | 1 x M.2 (PCIe 5.0 x4/x2); 1 x M.2 (PCIe 5.0 x4/x2); 2 x M.2 (PCIe 4.0 x4/x2); 1 x M.2 (PCIe 4.0 x2); 2 x SATA 6Gb/s; RAID 0/1/5/10 support |
| USB | 2 x USB4® Type-C®; 1 x USB 3.2 Gen 2x2 Type-C®; 1 x USB 3.2 Gen 2 Type-C®; 7 x USB 3.2 Gen 2 Type-A; Internal headers for USB 3.2 Gen 2x2, Gen 1, and 2.0 |
| Internal I/O Connectors | 24-pin ATX; 2 x 8-pin 12V; 1 x PCIe power; Multiple Fan/Pump headers; 4 x Addressable RGB; 1 x RGB; 5 x M.2; 2 x SATA; Front panel audio; USB headers; Noise/Temp sensors |

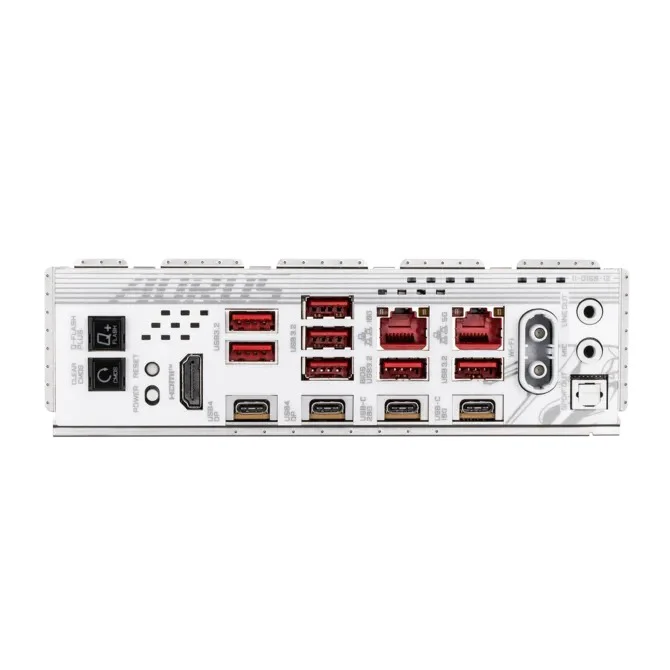

| Back Panel Connectors | Q-Flash Plus/Clear CMOS/Reset/Power buttons; 1 x HDMI; 2 x USB4®; 2 x USB Type-C®; 7 x USB 3.2 Gen 2 Type-A; 2 x RJ-45; 2 x Antenna; 2 x Audio; 1 x S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate, Fan fail warning, Noise detection |
| BIOS | 1 x 512 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC); Q-Flash; Q-Flash Plus; Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
Specifications:
| Category | Specifications |
|---|---|
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870E |
| Memory | Support for DDR5 up to 9000(O.C) MT/s; 4 x DDR5 DIMM sockets (up to 256 GB); Dual channel; Support for AMD EXPO™ and XMP modules |
| Onboard Graphics | 2 x USB4® USB Type-C® (3840x2160@240 Hz); 1 x HDMI 2.1 (4096x2160@60 Hz); 1 x internal HDMI (1920x1080@30 Hz) |
| Audio | Realtek® ALC1220 CODEC; ESS ES9118 DAC chip; DTS:X® Ultra; 2/4/5.1-channel; S/PDIF Out |
| LAN | 1 x Realtek® 5GbE LAN (LAN1); 1 x Realtek® 10GbE LAN (LAN2) |
| Wireless Communication | MediaTek Wi-Fi 7 MT7927, RZ738; 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz); Bluetooth 5.4 |
| Expansion Slots | 1 x PCIe 5.0 x16 (PCIEX16); 1 x PCIe 5.0 x8 (PCIEX8); 1 x PCIe 4.0 x4 (PCIEX4) |
| Storage Interface | 1 x M.2 (PCIe 5.0 x4/x2); 1 x M.2 (PCIe 5.0 x4/x2); 2 x M.2 (PCIe 4.0 x4/x2); 1 x M.2 (PCIe 4.0 x2); 2 x SATA 6Gb/s; RAID 0/1/5/10 support |
| USB | 2 x USB4® Type-C®; 1 x USB 3.2 Gen 2x2 Type-C®; 1 x USB 3.2 Gen 2 Type-C®; 7 x USB 3.2 Gen 2 Type-A; Internal headers for USB 3.2 Gen 2x2, Gen 1, and 2.0 |
| Internal I/O Connectors | 24-pin ATX; 2 x 8-pin 12V; 1 x PCIe power; Multiple Fan/Pump headers; 4 x Addressable RGB; 1 x RGB; 5 x M.2; 2 x SATA; Front panel audio; USB headers; Noise/Temp sensors |
| Back Panel Connectors | Q-Flash Plus/Clear CMOS/Reset/Power buttons; 1 x HDMI; 2 x USB4®; 2 x USB Type-C®; 7 x USB 3.2 Gen 2 Type-A; 2 x RJ-45; 2 x Antenna; 2 x Audio; 1 x S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate, Fan fail warning, Noise detection |
| BIOS | 1 x 512 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC); Q-Flash; Q-Flash Plus; Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
$628.56
Gigabyte X870E Aorus Master X3D Ice DDR5 AMD Gaming Motherboard—
$628.56
Description
Specifications:
| Category | Specifications |
|---|---|
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870E |
| Memory | Support for DDR5 up to 9000(O.C) MT/s; 4 x DDR5 DIMM sockets (up to 256 GB); Dual channel; Support for AMD EXPO™ and XMP modules |
| Onboard Graphics | 2 x USB4® USB Type-C® (3840x2160@240 Hz); 1 x HDMI 2.1 (4096x2160@60 Hz); 1 x internal HDMI (1920x1080@30 Hz) |
| Audio | Realtek® ALC1220 CODEC; ESS ES9118 DAC chip; DTS:X® Ultra; 2/4/5.1-channel; S/PDIF Out |
| LAN | 1 x Realtek® 5GbE LAN (LAN1); 1 x Realtek® 10GbE LAN (LAN2) |
| Wireless Communication | MediaTek Wi-Fi 7 MT7927, RZ738; 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz); Bluetooth 5.4 |
| Expansion Slots | 1 x PCIe 5.0 x16 (PCIEX16); 1 x PCIe 5.0 x8 (PCIEX8); 1 x PCIe 4.0 x4 (PCIEX4) |
| Storage Interface | 1 x M.2 (PCIe 5.0 x4/x2); 1 x M.2 (PCIe 5.0 x4/x2); 2 x M.2 (PCIe 4.0 x4/x2); 1 x M.2 (PCIe 4.0 x2); 2 x SATA 6Gb/s; RAID 0/1/5/10 support |
| USB | 2 x USB4® Type-C®; 1 x USB 3.2 Gen 2x2 Type-C®; 1 x USB 3.2 Gen 2 Type-C®; 7 x USB 3.2 Gen 2 Type-A; Internal headers for USB 3.2 Gen 2x2, Gen 1, and 2.0 |
| Internal I/O Connectors | 24-pin ATX; 2 x 8-pin 12V; 1 x PCIe power; Multiple Fan/Pump headers; 4 x Addressable RGB; 1 x RGB; 5 x M.2; 2 x SATA; Front panel audio; USB headers; Noise/Temp sensors |
| Back Panel Connectors | Q-Flash Plus/Clear CMOS/Reset/Power buttons; 1 x HDMI; 2 x USB4®; 2 x USB Type-C®; 7 x USB 3.2 Gen 2 Type-A; 2 x RJ-45; 2 x Antenna; 2 x Audio; 1 x S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate, Fan fail warning, Noise detection |
| BIOS | 1 x 512 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC); Q-Flash; Q-Flash Plus; Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
