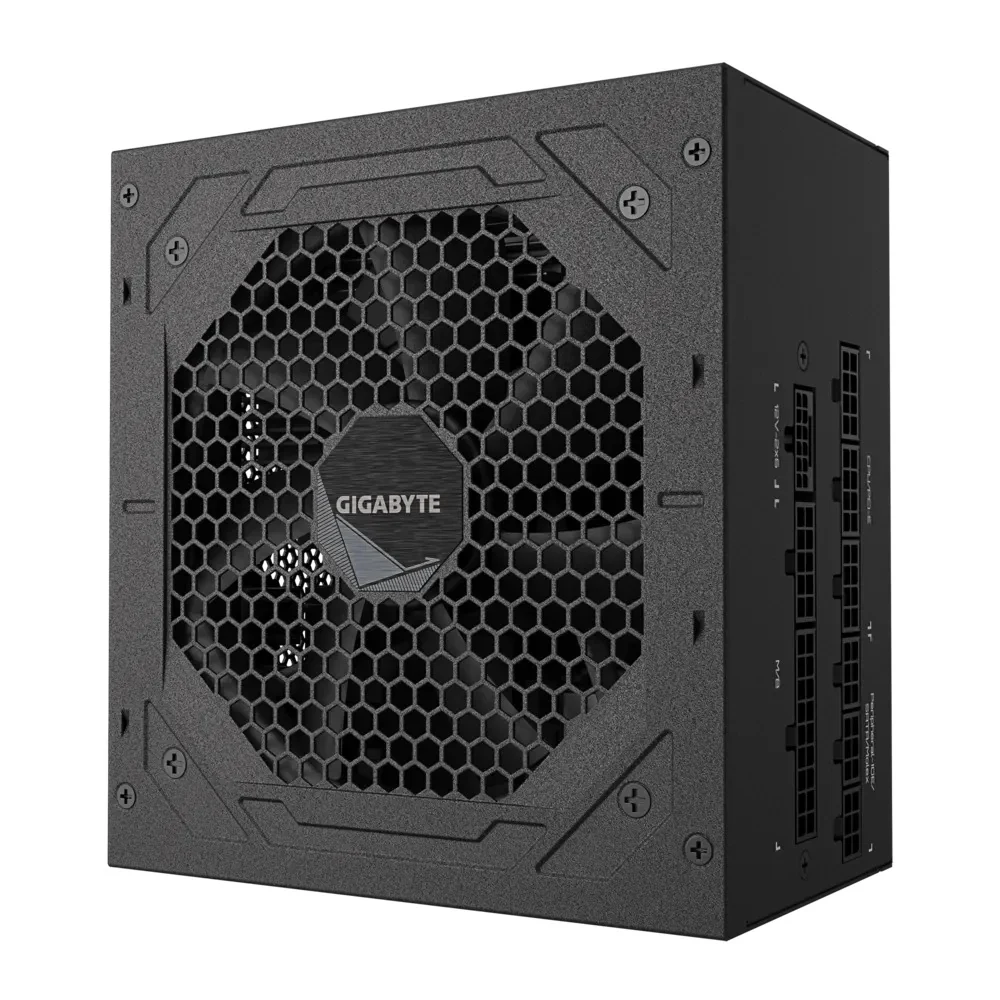

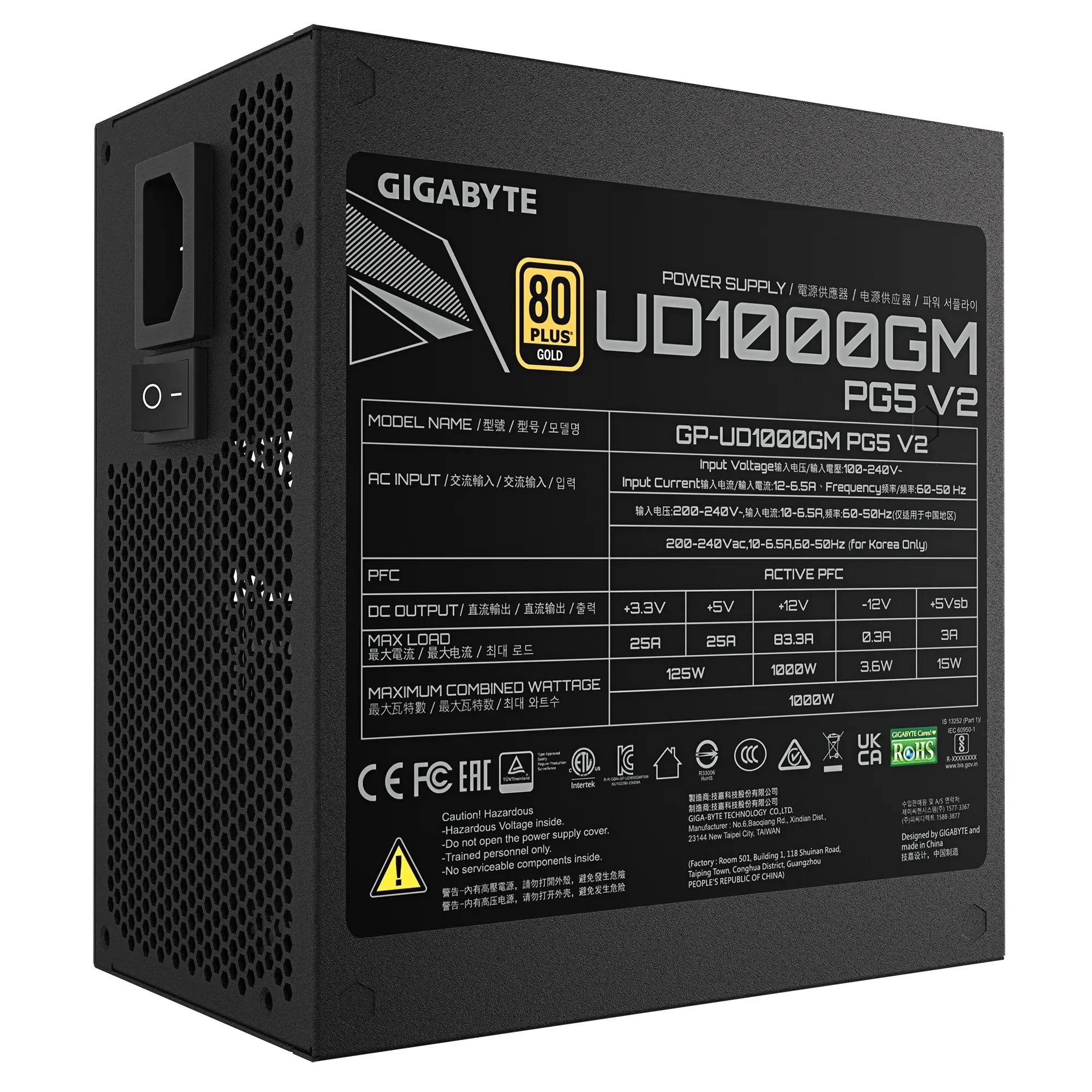

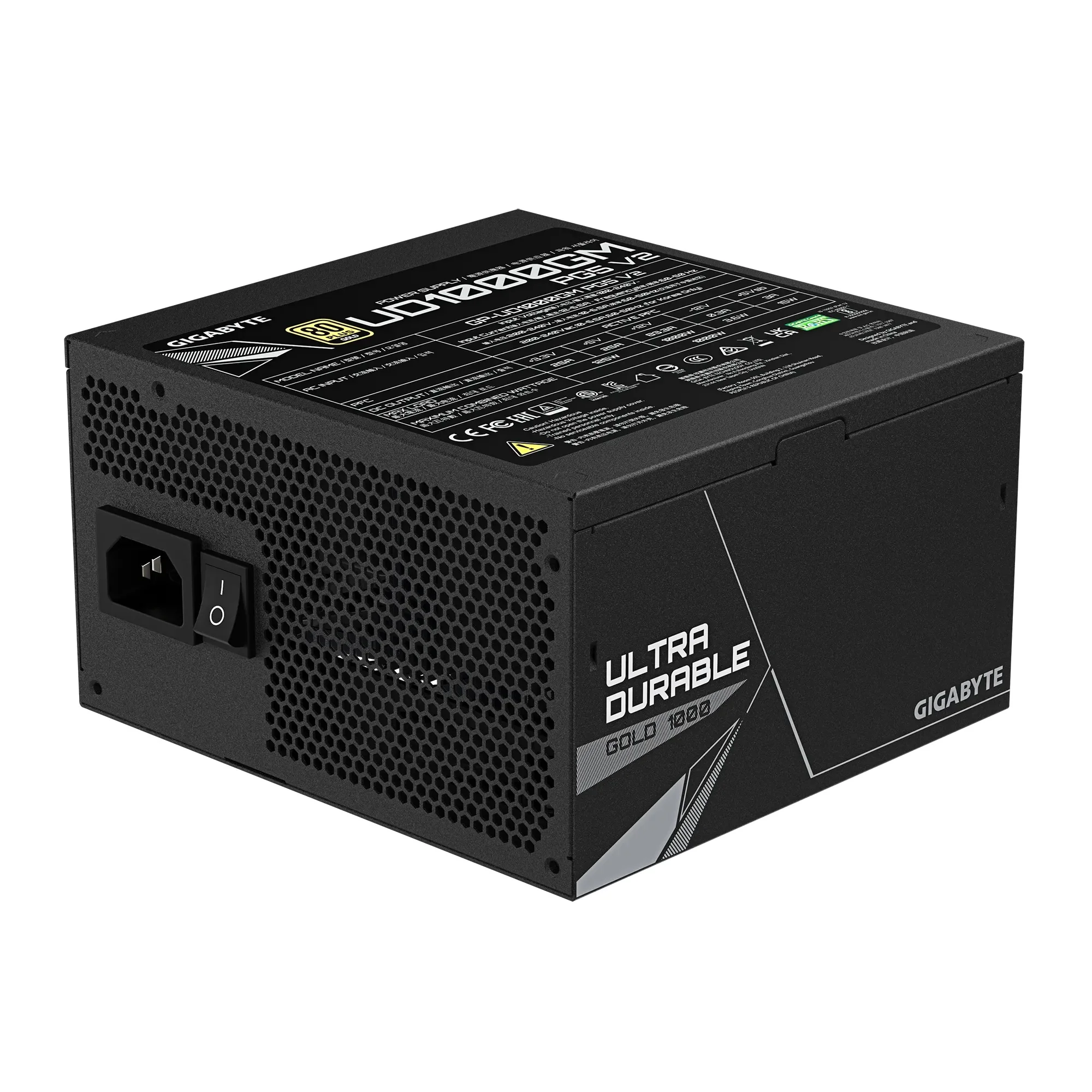

Gigabyte UD1000GM PG5 V2 1000W ATX 3.1 PCIe Gen 5.1 80+ Gold Modular Power Supply
Specification:
| Model | GP-UD1000GM PG5 V2 |
|---|---|
| Type | Intel Form Factor ATX 12V v3.1 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 1000W |
| Dimensions | 150 x 140 x 86 mm |
| Fan Type | 120mm Hydraulic Bearing (HYB) Fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protections | OVP / OPP / SCP / UVP / OCP / OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Embossed, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 PCI-e 12+4 Pin x 1 : 700mm*1 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3 + 4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1 |
Specification:
| Model | GP-UD1000GM PG5 V2 |
|---|---|
| Type | Intel Form Factor ATX 12V v3.1 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 1000W |
| Dimensions | 150 x 140 x 86 mm |
| Fan Type | 120mm Hydraulic Bearing (HYB) Fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protections | OVP / OPP / SCP / UVP / OCP / OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Embossed, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 PCI-e 12+4 Pin x 1 : 700mm*1 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3 + 4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1 |
$131.65
Gigabyte UD1000GM PG5 V2 1000W ATX 3.1 PCIe Gen 5.1 80+ Gold Modular Power Supply—
$131.65
Description
Specification:
| Model | GP-UD1000GM PG5 V2 |
|---|---|
| Type | Intel Form Factor ATX 12V v3.1 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 1000W |
| Dimensions | 150 x 140 x 86 mm |
| Fan Type | 120mm Hydraulic Bearing (HYB) Fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protections | OVP / OPP / SCP / UVP / OCP / OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Embossed, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 PCI-e 12+4 Pin x 1 : 700mm*1 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3 + 4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1 |
