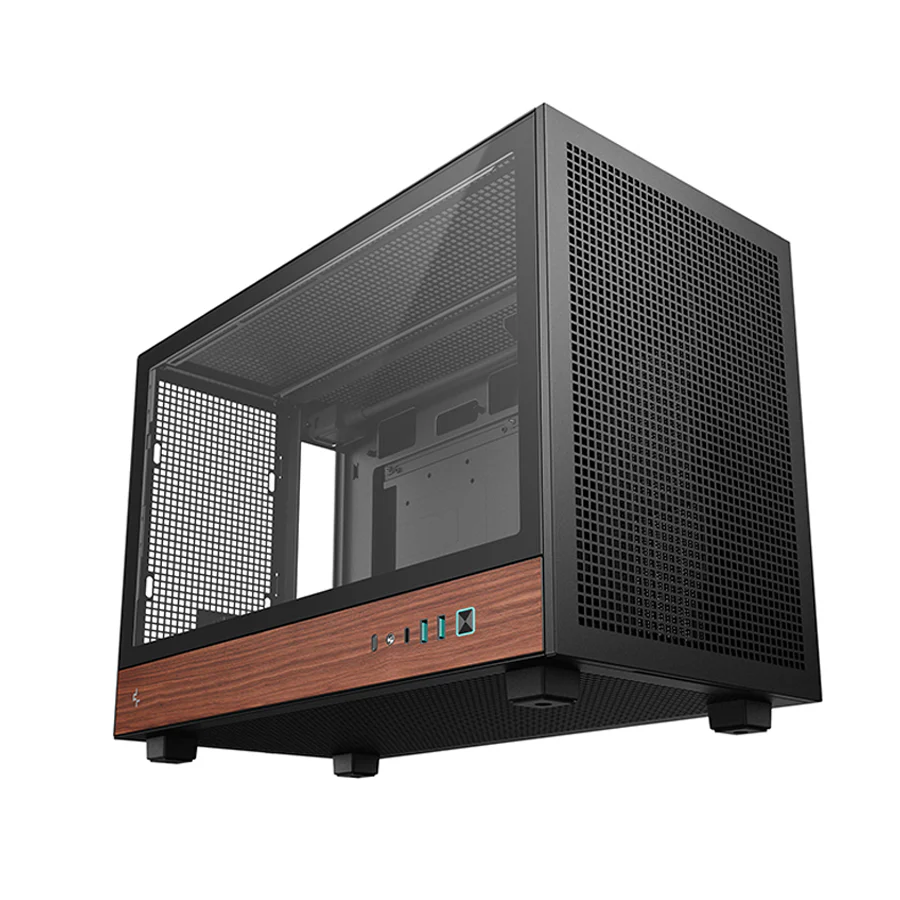

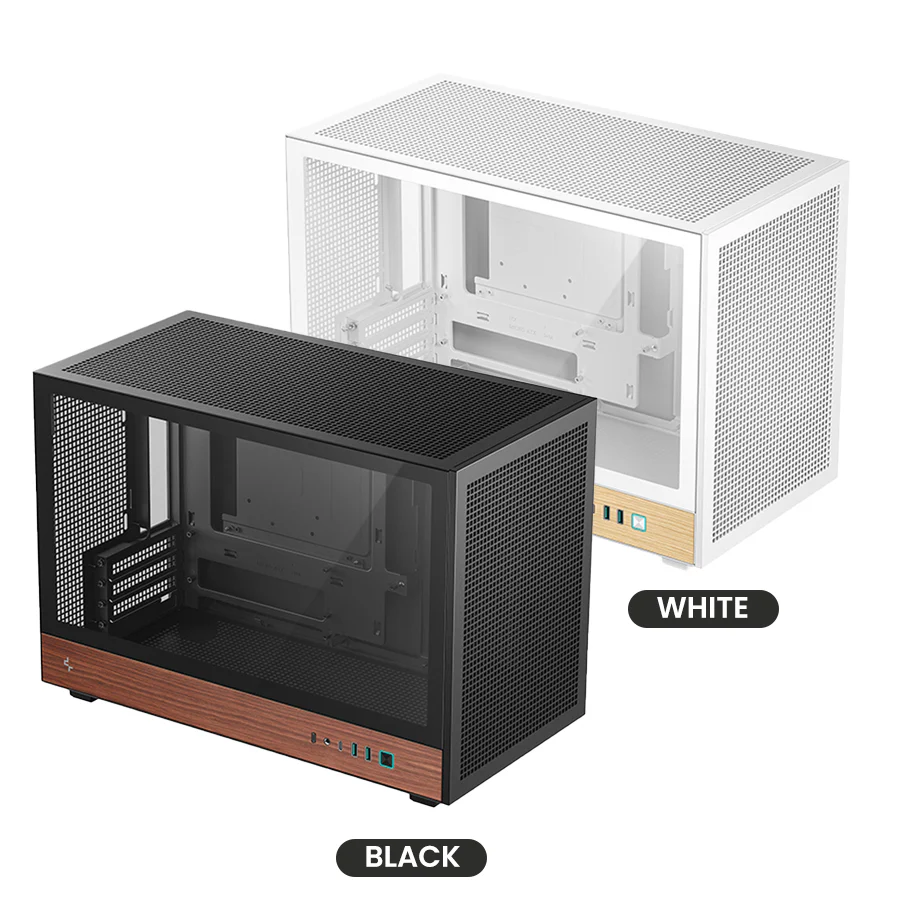

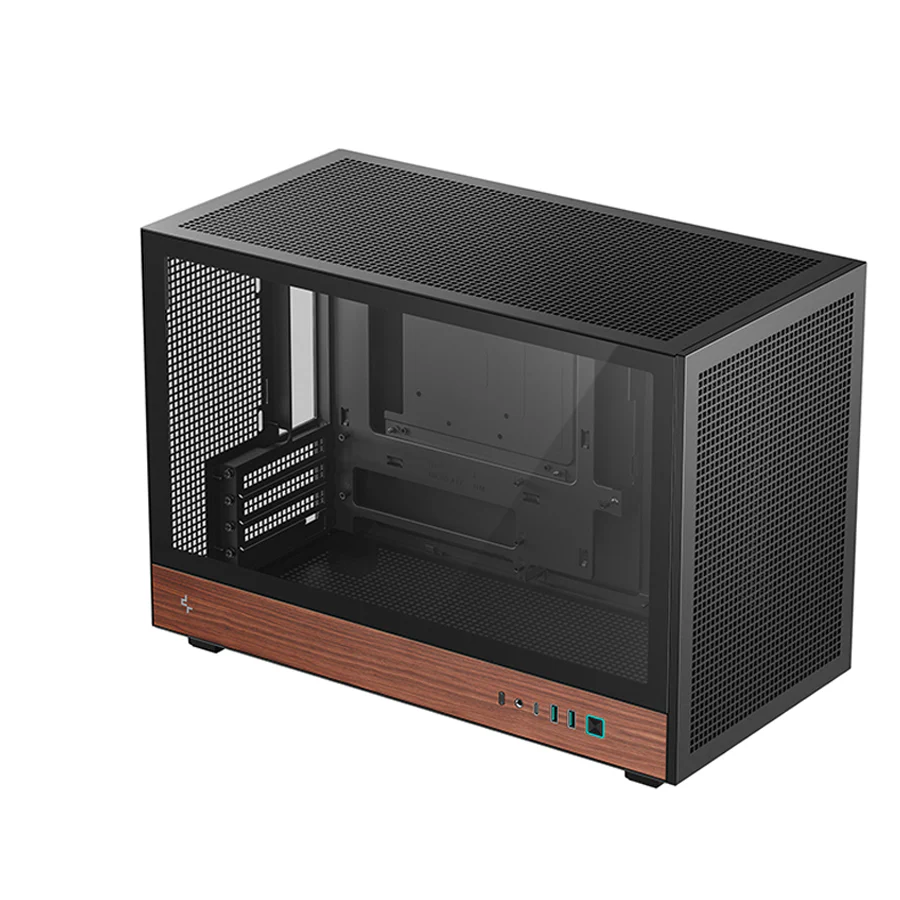

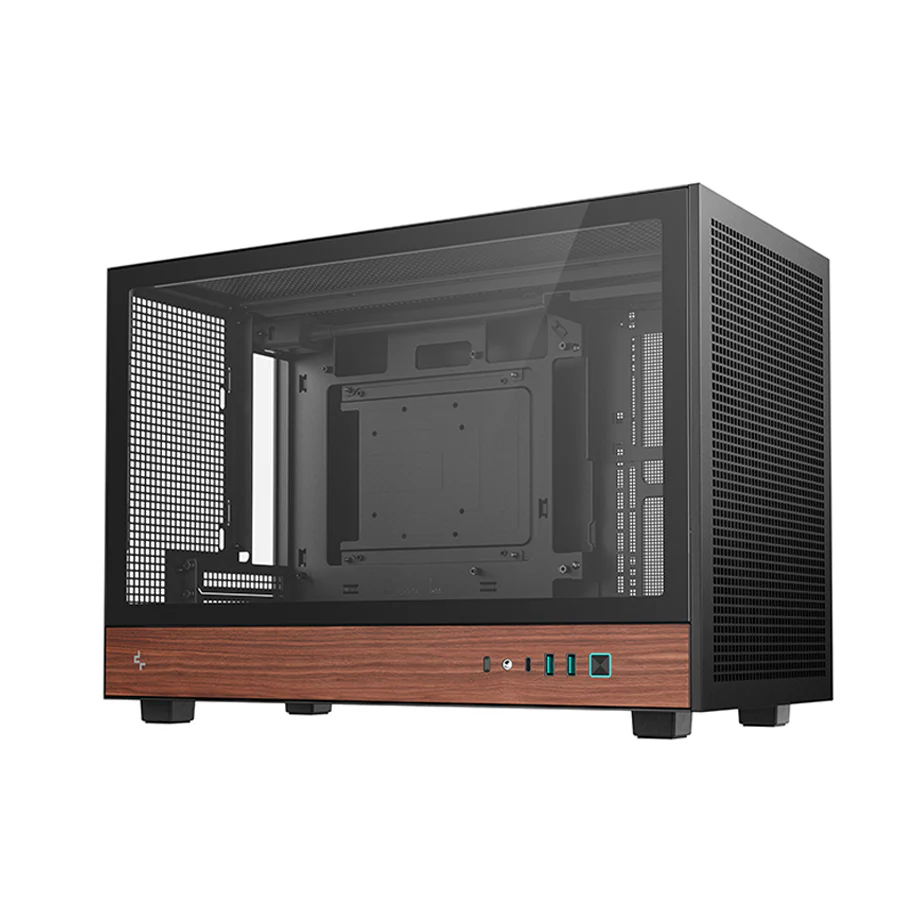

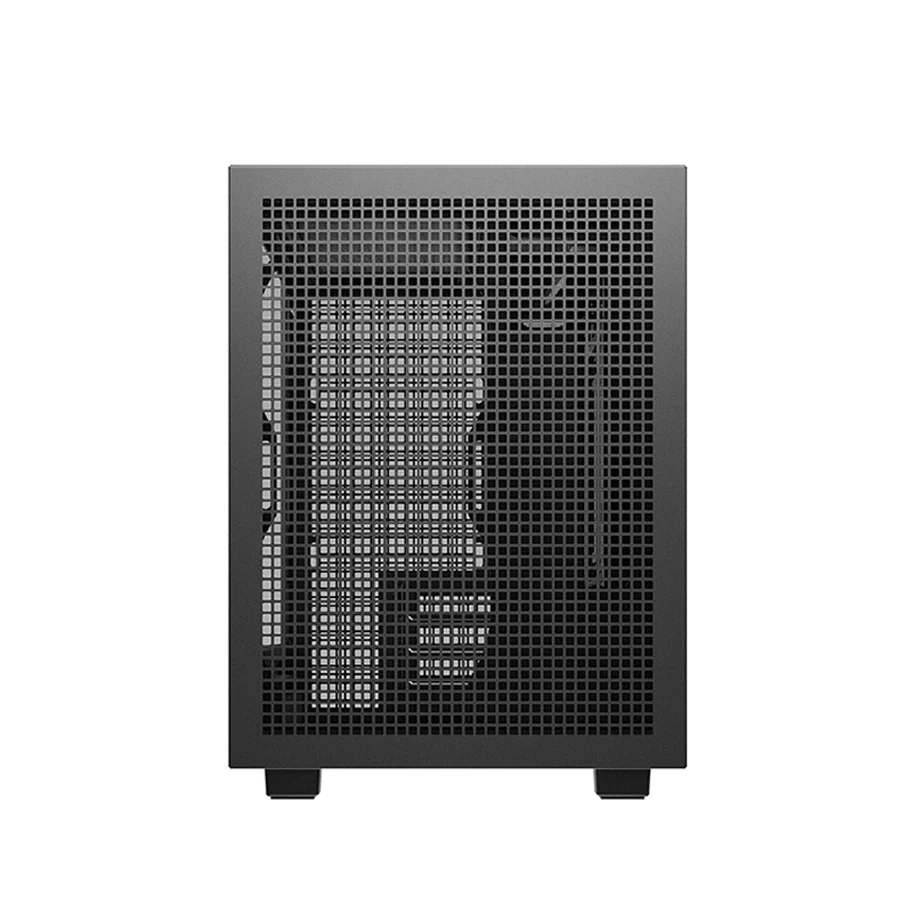

DeepCool CH260 Wood High Airflow Compact M-ATX Wood Grain PC Case (Black, White) (R-CH260-BKNWM0-G-1, R-CH260-WHNWM0-G-1)
CH260 WOOD
The CH260 series is an expanded version of the classic DeepCool ITX case CH160, capable of containing up to M-ATX motherboard and inheriting its high airflow legacy thanks to the full steel mesh panel, now available in a wood-grain option.
| Product Dimensions | 438 × 225 × 312.5 mm (L × W × H) |
| Net Weight | 5.3 kg |
| Materials | ABS + SPCC + Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX / Micro-ATX (Rear Connector) |
| Front I/O Ports | USB 3.0 ×2 / USB Gen2 Type-C ×1 / Audio / Mic ×1 |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 1 |
| Expansion Slots | 4 Slots |
| Pre-Installed Fans | None |
| Fan Support | Front: 2 × 120 mm Top: 3 × 120 mm / 2 × 140 mm Rear: 1 × 120 mm |
| Radiator Support | Front: N/A Top: 120 / 140 / 240 / 280 / 360 mm Bottom: N/A Rear: 120 mm |
| CPU Cooler Height Limit | 174 mm |
| GPU Length Limit | 388 mm / 413 mm (No Front Fans) |
| Power Supply Type | ATX PS2 (Maximum Length: 150 mm) |
CH260 WOOD
The CH260 series is an expanded version of the classic DeepCool ITX case CH160, capable of containing up to M-ATX motherboard and inheriting its high airflow legacy thanks to the full steel mesh panel, now available in a wood-grain option.
| Product Dimensions | 438 × 225 × 312.5 mm (L × W × H) |
| Net Weight | 5.3 kg |
| Materials | ABS + SPCC + Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX / Micro-ATX (Rear Connector) |
| Front I/O Ports | USB 3.0 ×2 / USB Gen2 Type-C ×1 / Audio / Mic ×1 |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 1 |
| Expansion Slots | 4 Slots |
| Pre-Installed Fans | None |
| Fan Support | Front: 2 × 120 mm Top: 3 × 120 mm / 2 × 140 mm Rear: 1 × 120 mm |
| Radiator Support | Front: N/A Top: 120 / 140 / 240 / 280 / 360 mm Bottom: N/A Rear: 120 mm |
| CPU Cooler Height Limit | 174 mm |
| GPU Length Limit | 388 mm / 413 mm (No Front Fans) |
| Power Supply Type | ATX PS2 (Maximum Length: 150 mm) |
Select PC Case Color
From $17.81
Original: $59.36
-70%DeepCool CH260 Wood High Airflow Compact M-ATX Wood Grain PC Case (Black, White) (R-CH260-BKNWM0-G-1, R-CH260-WHNWM0-G-1)—
$59.36
$17.81Description
CH260 WOOD
The CH260 series is an expanded version of the classic DeepCool ITX case CH160, capable of containing up to M-ATX motherboard and inheriting its high airflow legacy thanks to the full steel mesh panel, now available in a wood-grain option.
| Product Dimensions | 438 × 225 × 312.5 mm (L × W × H) |
| Net Weight | 5.3 kg |
| Materials | ABS + SPCC + Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX / Micro-ATX (Rear Connector) |
| Front I/O Ports | USB 3.0 ×2 / USB Gen2 Type-C ×1 / Audio / Mic ×1 |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 1 |
| Expansion Slots | 4 Slots |
| Pre-Installed Fans | None |
| Fan Support | Front: 2 × 120 mm Top: 3 × 120 mm / 2 × 140 mm Rear: 1 × 120 mm |
| Radiator Support | Front: N/A Top: 120 / 140 / 240 / 280 / 360 mm Bottom: N/A Rear: 120 mm |
| CPU Cooler Height Limit | 174 mm |
| GPU Length Limit | 388 mm / 413 mm (No Front Fans) |
| Power Supply Type | ATX PS2 (Maximum Length: 150 mm) |
