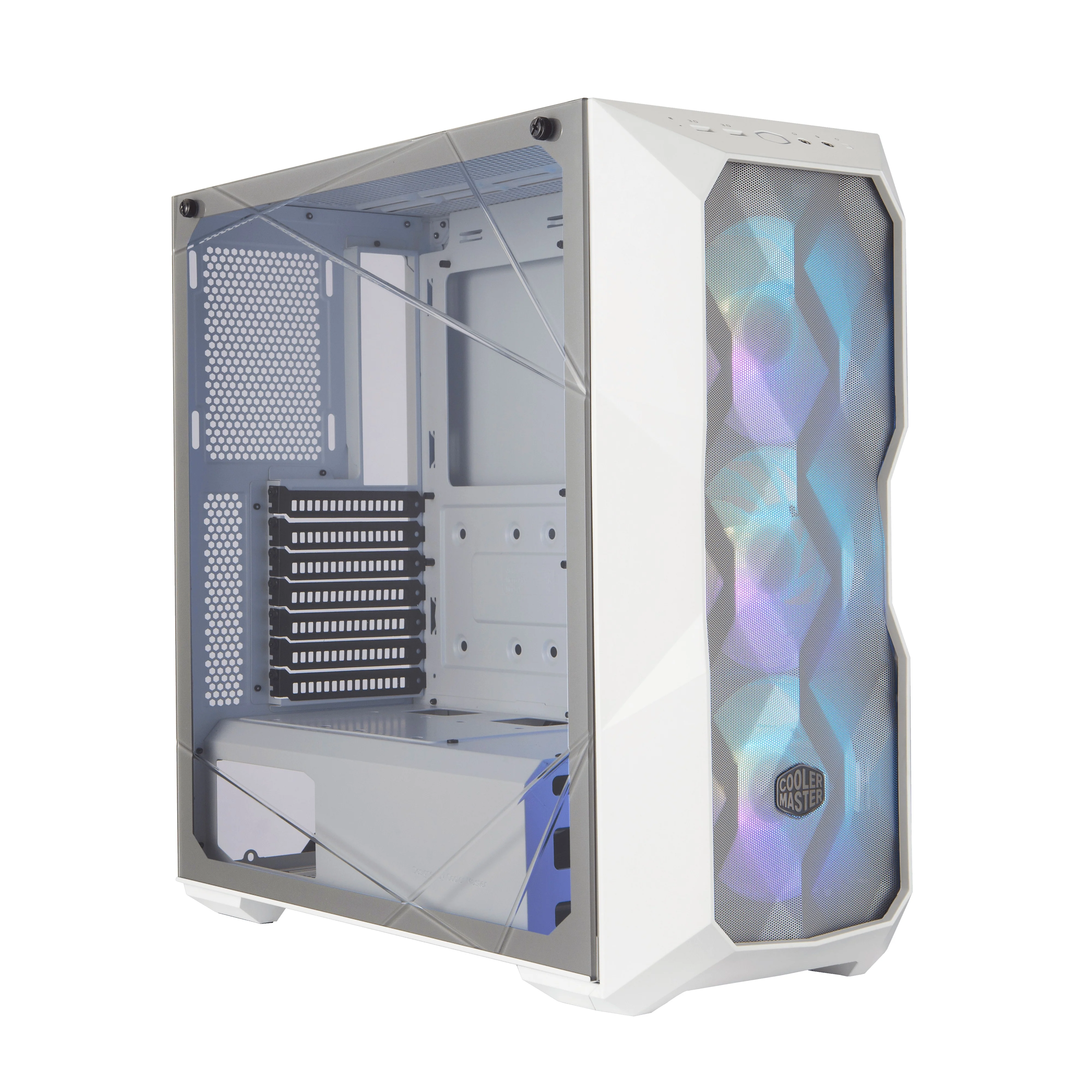

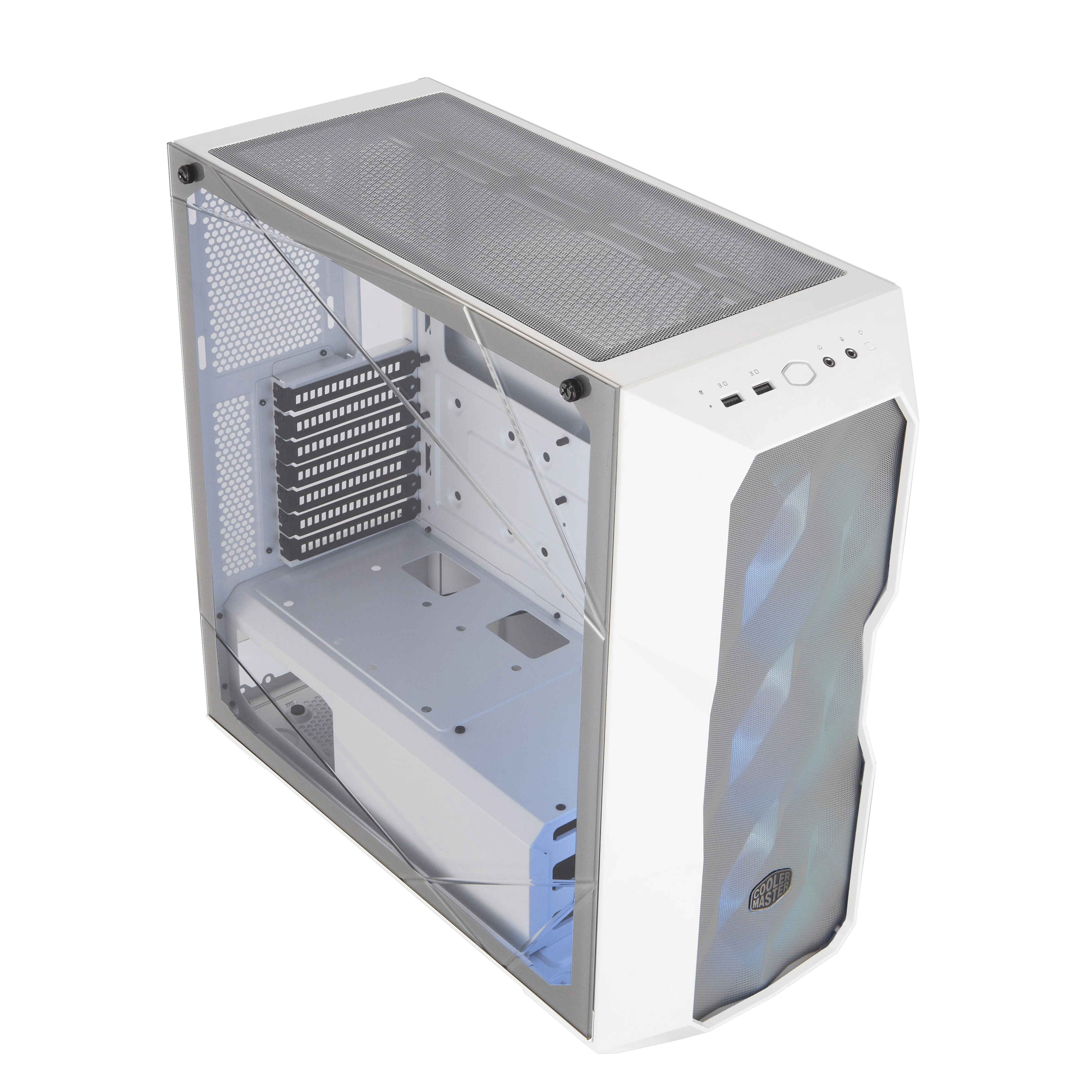

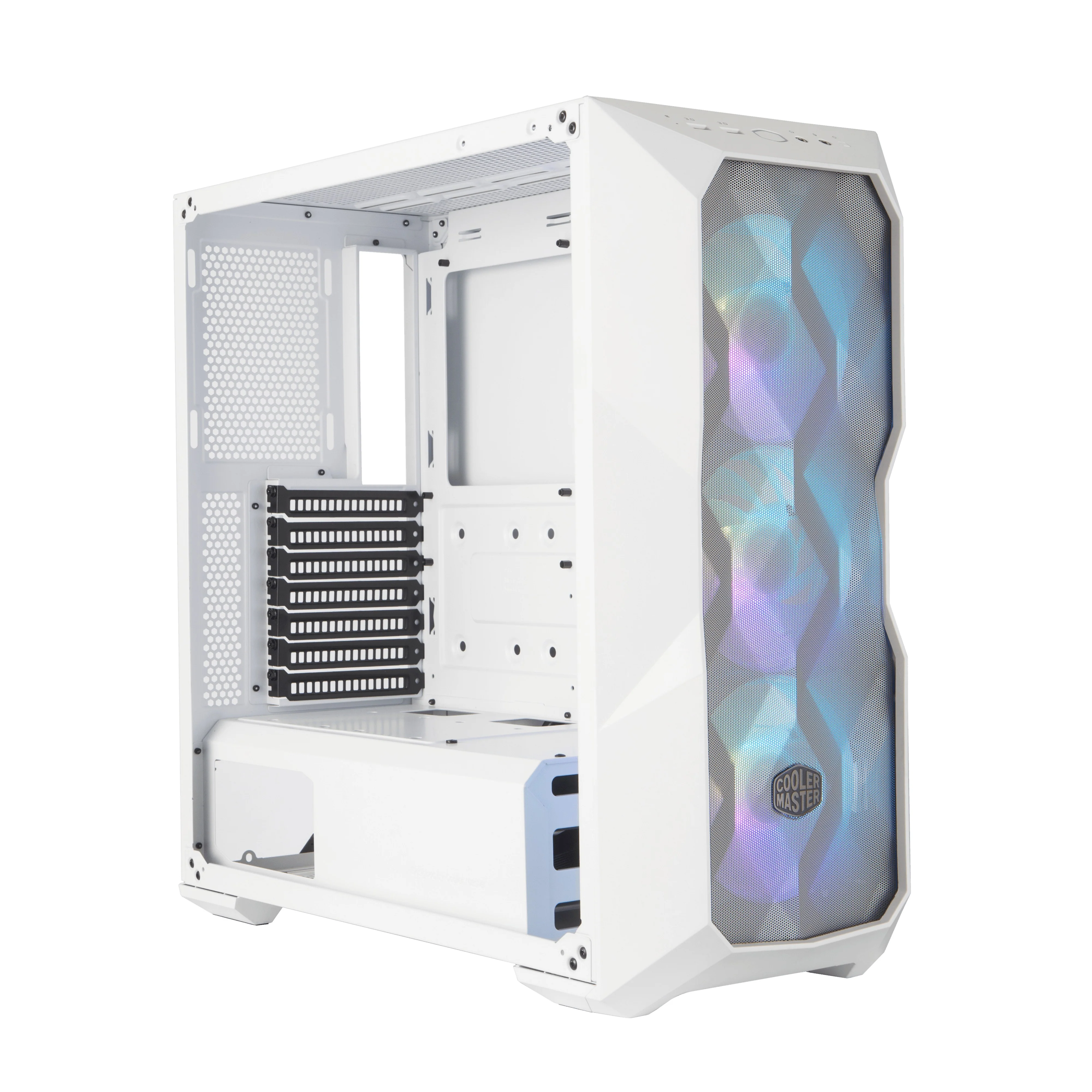

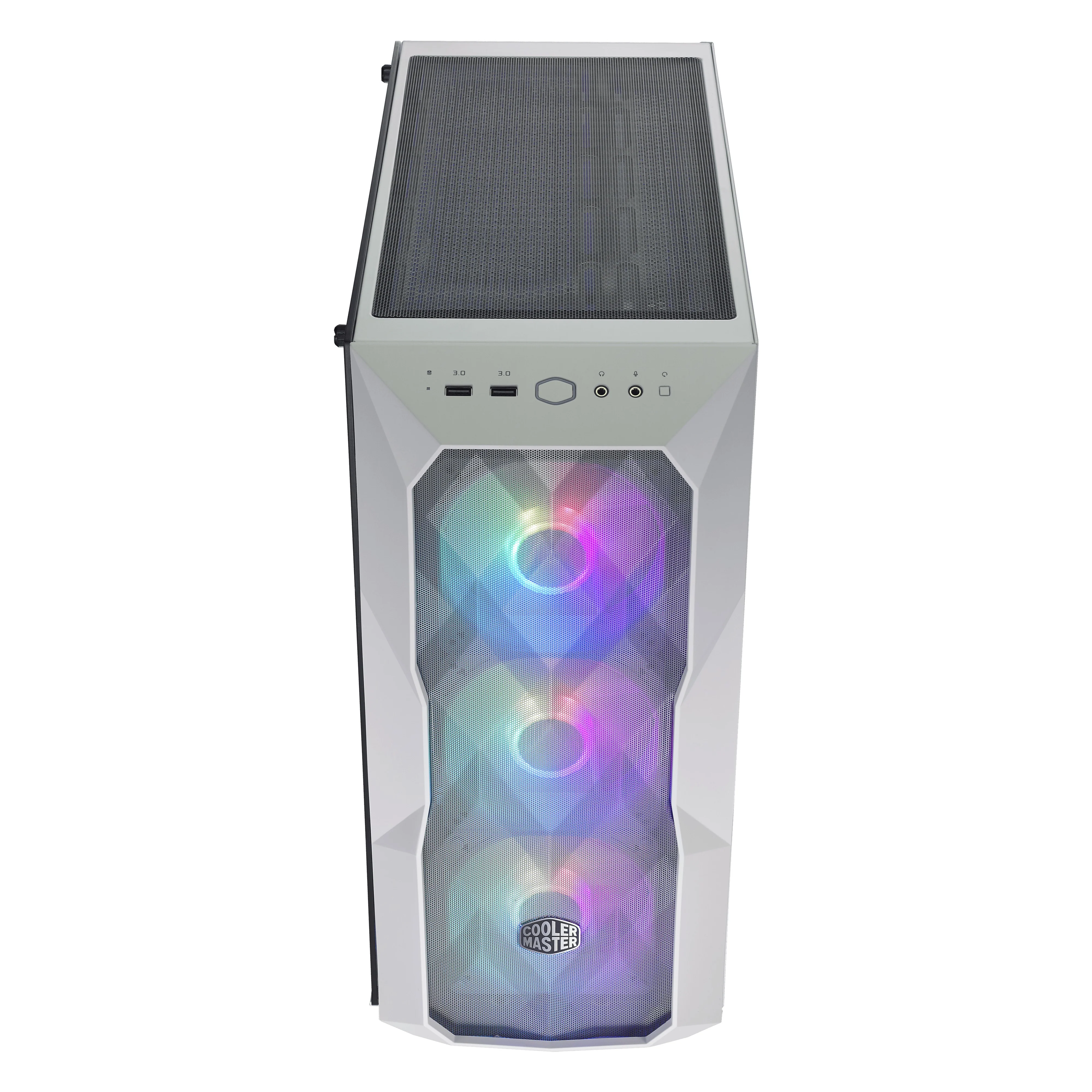

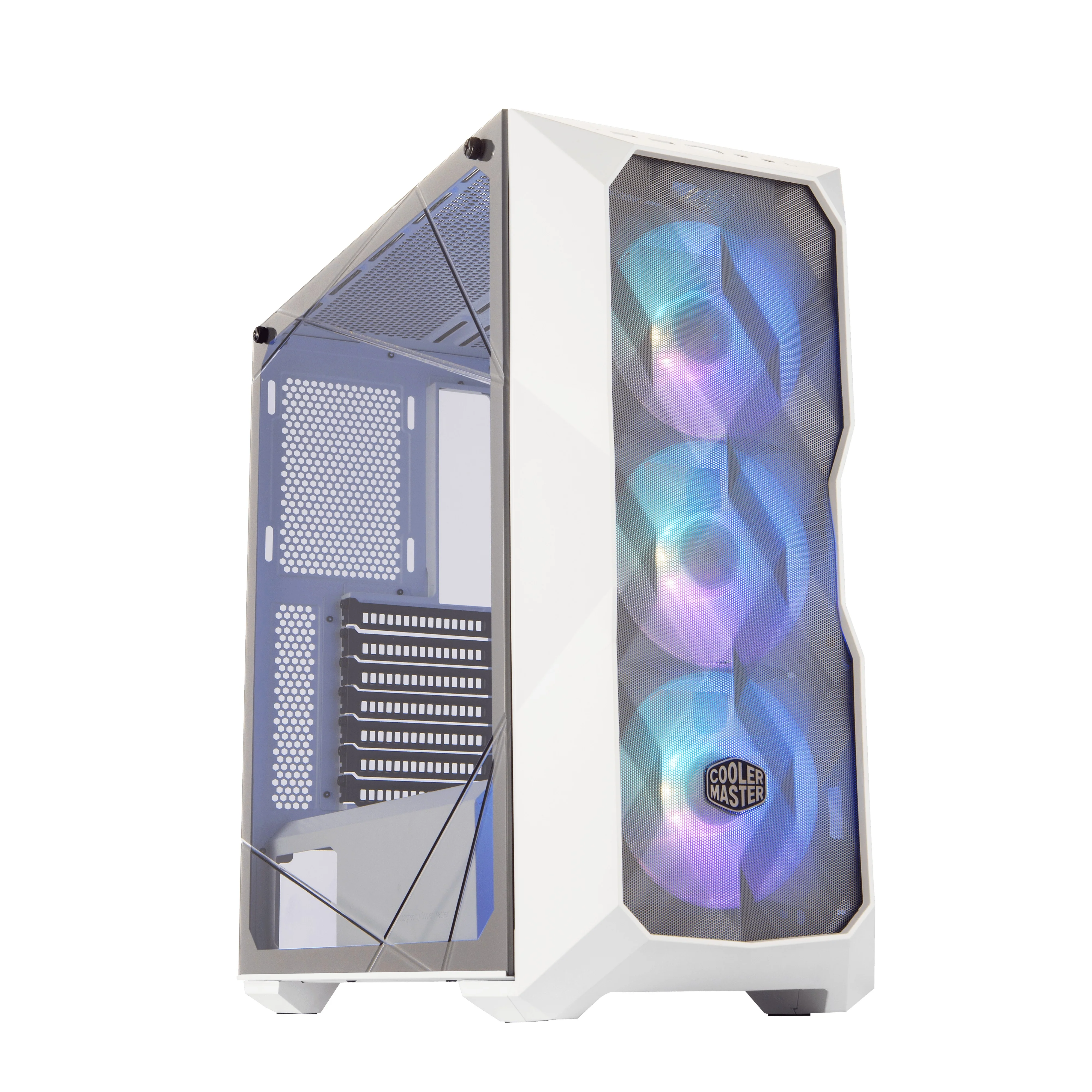

Cooler Master Masterbox TD500 Mesh V2 Mid Tower Case (White)
MASTERBOX TD500 MESH / MESH WHITE
EXQUISITELY RUTHLESS
• Polygonal Mesh
• Crystalline Tempered Glass
• Triple ARGB Fans
• Dual 360mm Radiator Support
• Versatile Cooling Options
• Room For Upgrades
Specifications:
|
Color(s)
|
White |
|
Materials - Exterior
|
Steel, Mesh, Plastic |
|
Materials - Left Side Panel
|
Tempered Glass |
|
Dimensions (L x W x H)
|
493 x 217 x 469mm (incl. Protrusions), 429.5 x 205x 447mm (excl. Protrusions) |
|
Volume
|
40.14L (excl. Protrusions) |
|
Motherboard Support
|
Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12” x 10.7” motherboards) |
|
Expansion Slots
|
7 |
|
5.25" Drive Bays
|
N/A |
|
2.5" / 3.5" Drive Bays (Combo)
|
2 |
|
2.5" Drive Bays
|
4 (2+2 combo) |
|
I/O Panel
|
2 x USB 3.2 Gen 1 (USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Hub, 1x ARGB 1-to-3 Splitter |
|
Pre-installed Fans - Top
|
N/A |
|
Pre-installed Fans - Front
|
3x 120mm CF120 ARGB |
|
Pre-installed Fans - Rear
|
N/A |
|
Fan Support - Top
|
3x 120mm, 2x 140mm |
|
Fan Support - Front
|
3x 120mm, 2x 140mm |
|
Fan Support - Rear
|
1x 120mm |
|
Radiator Support - Top
|
120mm, 240mm, 360mm, (44mm max motherboard component height) |
|
Radiator Support - Front
|
120mm, 140mm, 240mm, 280mm, 360mm |
|
Radiator Support - Rear
|
120mm |
|
Clearance - CPU Cooler
|
165mm/6.49" |
|
Clearance - PSU
|
180mm/7.08", 295mm/11.61" (w/ HDD cage removed) |
|
Clearance - GFX
|
410mm/16.1" |
|
Cable Routing
|
19mm/0.74" |
|
Dust Filters
|
Front, Top, Bottom |
|
Power Supply Support
|
Bottom Mount, ATX |
|
Warranty
|
2 years |
|
Series
|
MasterBox Series |
|
Size
|
Mid Tower |
MASTERBOX TD500 MESH / MESH WHITE
EXQUISITELY RUTHLESS
• Polygonal Mesh
• Crystalline Tempered Glass
• Triple ARGB Fans
• Dual 360mm Radiator Support
• Versatile Cooling Options
• Room For Upgrades
Specifications:
|
Color(s)
|
White |
|
Materials - Exterior
|
Steel, Mesh, Plastic |
|
Materials - Left Side Panel
|
Tempered Glass |
|
Dimensions (L x W x H)
|
493 x 217 x 469mm (incl. Protrusions), 429.5 x 205x 447mm (excl. Protrusions) |
|
Volume
|
40.14L (excl. Protrusions) |
|
Motherboard Support
|
Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12” x 10.7” motherboards) |
|
Expansion Slots
|
7 |
|
5.25" Drive Bays
|
N/A |
|
2.5" / 3.5" Drive Bays (Combo)
|
2 |
|
2.5" Drive Bays
|
4 (2+2 combo) |
|
I/O Panel
|
2 x USB 3.2 Gen 1 (USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Hub, 1x ARGB 1-to-3 Splitter |
|
Pre-installed Fans - Top
|
N/A |
|
Pre-installed Fans - Front
|
3x 120mm CF120 ARGB |
|
Pre-installed Fans - Rear
|
N/A |
|
Fan Support - Top
|
3x 120mm, 2x 140mm |
|
Fan Support - Front
|
3x 120mm, 2x 140mm |
|
Fan Support - Rear
|
1x 120mm |
|
Radiator Support - Top
|
120mm, 240mm, 360mm, (44mm max motherboard component height) |
|
Radiator Support - Front
|
120mm, 140mm, 240mm, 280mm, 360mm |
|
Radiator Support - Rear
|
120mm |
|
Clearance - CPU Cooler
|
165mm/6.49" |
|
Clearance - PSU
|
180mm/7.08", 295mm/11.61" (w/ HDD cage removed) |
|
Clearance - GFX
|
410mm/16.1" |
|
Cable Routing
|
19mm/0.74" |
|
Dust Filters
|
Front, Top, Bottom |
|
Power Supply Support
|
Bottom Mount, ATX |
|
Warranty
|
2 years |
|
Series
|
MasterBox Series |
|
Size
|
Mid Tower |
$28.05
Original: $93.51
-70%Cooler Master Masterbox TD500 Mesh V2 Mid Tower Case (White)—
$93.51
$28.05Description
