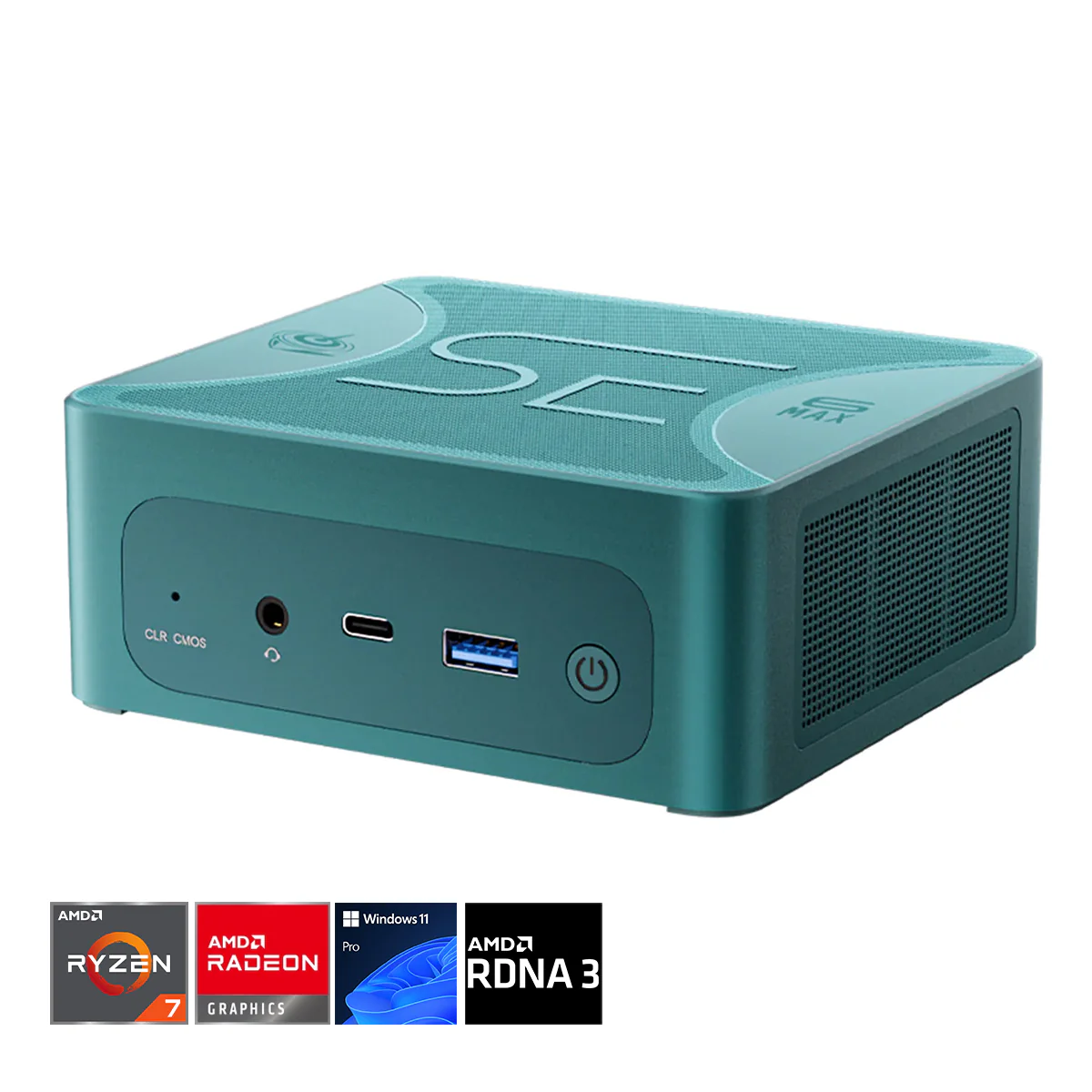

Beelink SER6 Max AMD Ryzen 7 7735HS 32GB RAM 1TB SSD Windows 11 Pro Mini PC (Dark Green)
SER6 Max 7735HS
Gaming MINI PC with powerful performance
SER6 Max offers excellent performance. The Max Turbo frequency can reach 4.75GHz. Turbo TDP can reach 54W. Test results are for reference only, and the actual performance may vary due to environmental changes.

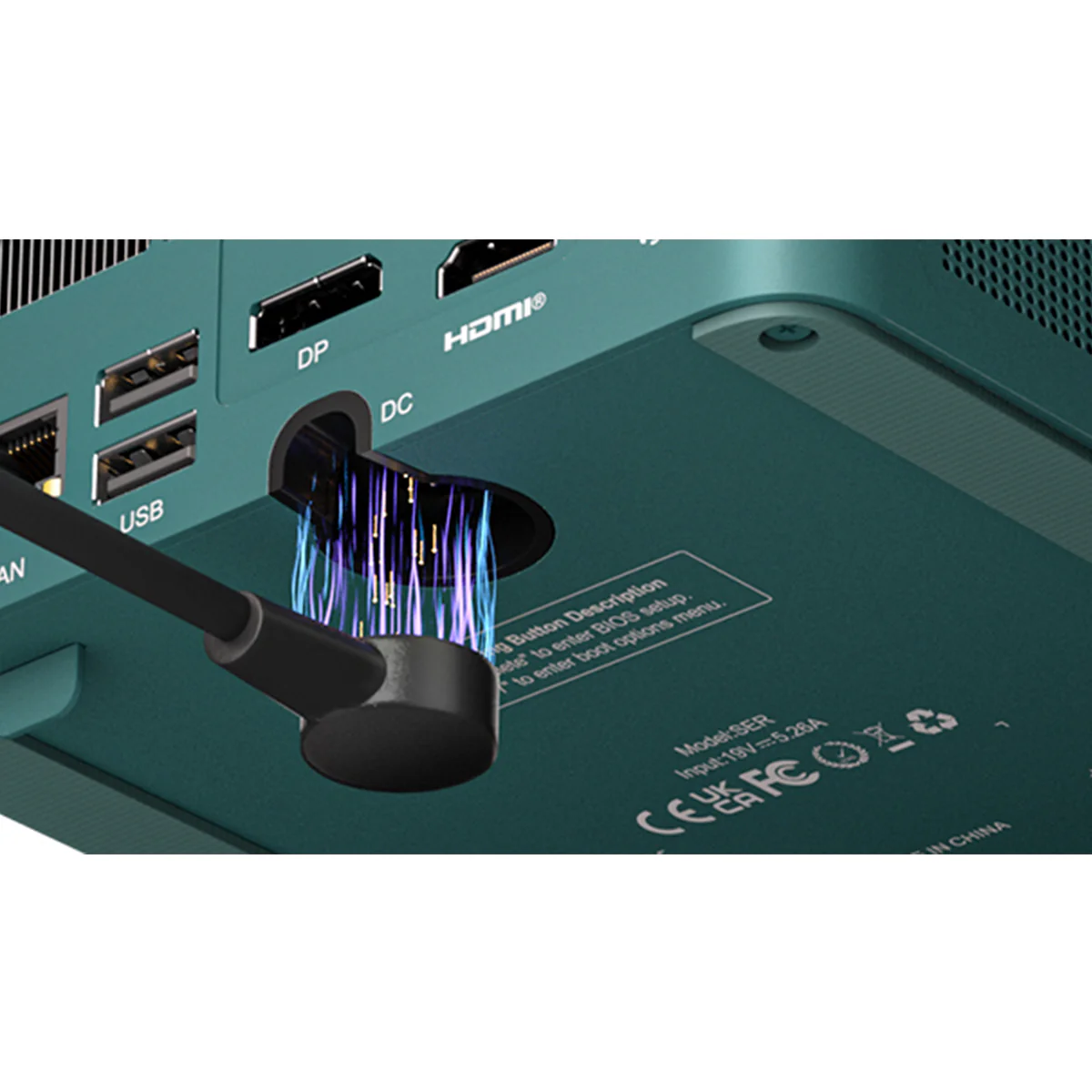

Magnetic Power Supply
4+2+1 Power Supply Module
Full-featured Dual USB4
SER6 Max adopts two SO-DIMM slots for DDR5-4800MHz RAM, which can support up to 64GB of dual-channel memory. The retail unit ships with 32GB (16GB*2) DDR5 RAM. The device also comes with a pre-installed M.2 2280 NVMe SSD with a capacity of 500GB or 1TB in PCIe 4.0 x4 format. Furthermore, users have the option of adding an extra M.2 2280 NVMe SSD. One of the two M.2 slots can be turned into a 2.5-inch HDD/SSD interface with an expansion board (optional), please contact customer service for help before replacement. The expansion board needs to be purchased separately.
Vapor chamber quickly distributes the CPU heat to the plate, achieving efficient heat dissipation. The system fan and SSD heat sink dissipate the heat for the system, utilizing the airflow to provide efficient cooling for SSD and DDR.
RDNA2 Graphics Card Architecture Game Frame Rate Test
SPECIFICATIONS:
| CPU | AMD Ryzen™ 7 7735HS Base 3.20 GHz boost to 4.75GHz |
| GPU | 12 Cores 2200 MHz Frequency |
| SSD | M.2 2280 PCIe 4.0 1TB SSD |
| Memory | Dual SO-DIMM 32GB DDR5 |
| Cooling System | MSC Technology-Vapor Chamber and System Fan |

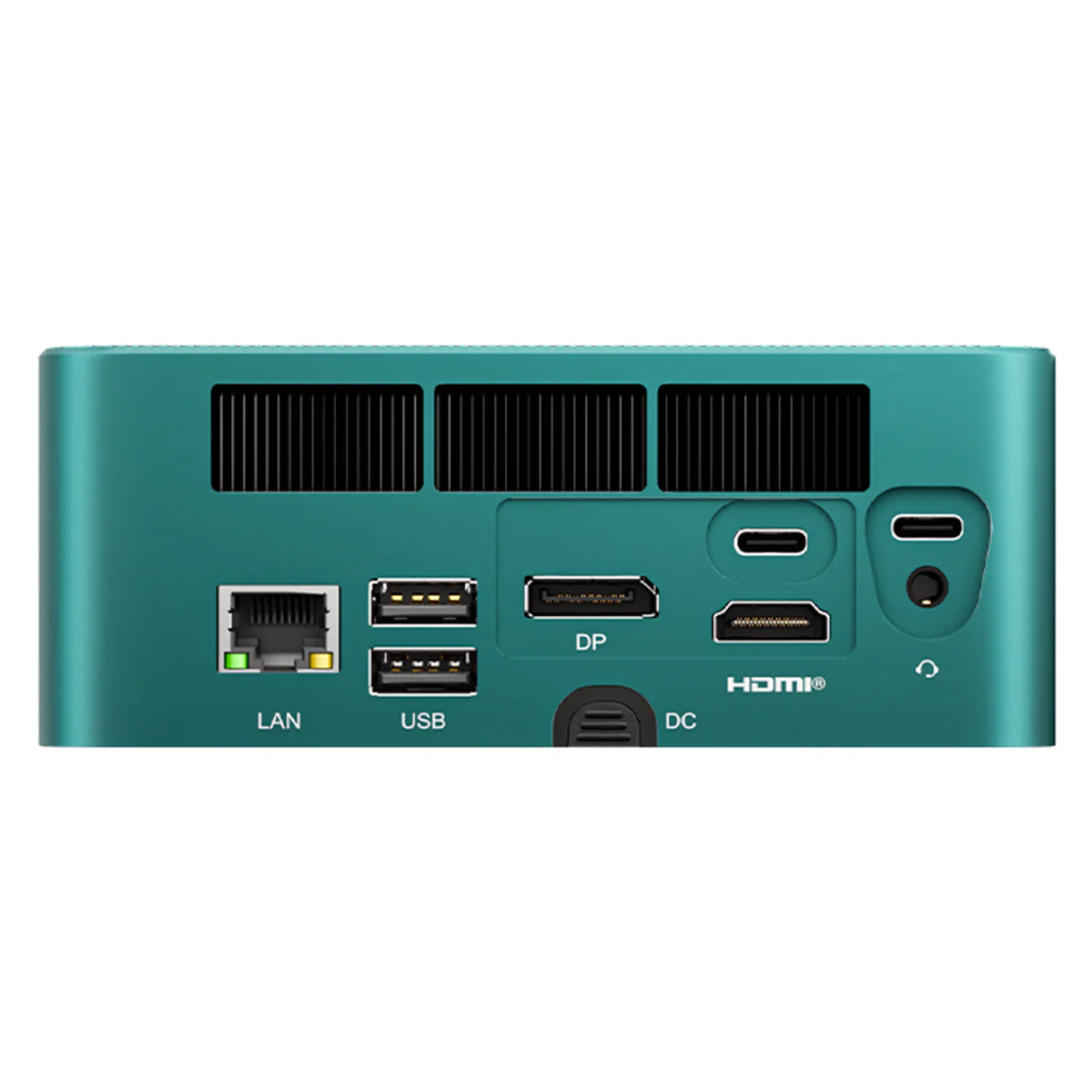

| Quad Display | HDMI+DisplayPort+Dual USB4, support 4K 144Hz displays. |
| Color | Dark Green |
| Audio | 3.5mm Audio Jack*2 Realtek ALC897 |
| Wireless Network | WiFi 6+Bluetooth 5.2 |
| Adapter | Input: AC 110V,50/60Hz Output: 19V/5.26A |
| Additional function | AUTO POWER ON WOL |
SER6 Max 7735HS
Gaming MINI PC with powerful performance
SER6 Max offers excellent performance. The Max Turbo frequency can reach 4.75GHz. Turbo TDP can reach 54W. Test results are for reference only, and the actual performance may vary due to environmental changes.
Magnetic Power Supply
4+2+1 Power Supply Module
Full-featured Dual USB4
SER6 Max adopts two SO-DIMM slots for DDR5-4800MHz RAM, which can support up to 64GB of dual-channel memory. The retail unit ships with 32GB (16GB*2) DDR5 RAM. The device also comes with a pre-installed M.2 2280 NVMe SSD with a capacity of 500GB or 1TB in PCIe 4.0 x4 format. Furthermore, users have the option of adding an extra M.2 2280 NVMe SSD. One of the two M.2 slots can be turned into a 2.5-inch HDD/SSD interface with an expansion board (optional), please contact customer service for help before replacement. The expansion board needs to be purchased separately.
Vapor chamber quickly distributes the CPU heat to the plate, achieving efficient heat dissipation. The system fan and SSD heat sink dissipate the heat for the system, utilizing the airflow to provide efficient cooling for SSD and DDR.
RDNA2 Graphics Card Architecture Game Frame Rate Test
SPECIFICATIONS:
| CPU | AMD Ryzen™ 7 7735HS Base 3.20 GHz boost to 4.75GHz |
| GPU | 12 Cores 2200 MHz Frequency |
| SSD | M.2 2280 PCIe 4.0 1TB SSD |
| Memory | Dual SO-DIMM 32GB DDR5 |
| Cooling System | MSC Technology-Vapor Chamber and System Fan |
| Quad Display | HDMI+DisplayPort+Dual USB4, support 4K 144Hz displays. |
| Color | Dark Green |
| Audio | 3.5mm Audio Jack*2 Realtek ALC897 |
| Wireless Network | WiFi 6+Bluetooth 5.2 |
| Adapter | Input: AC 110V,50/60Hz Output: 19V/5.26A |
| Additional function | AUTO POWER ON WOL |
