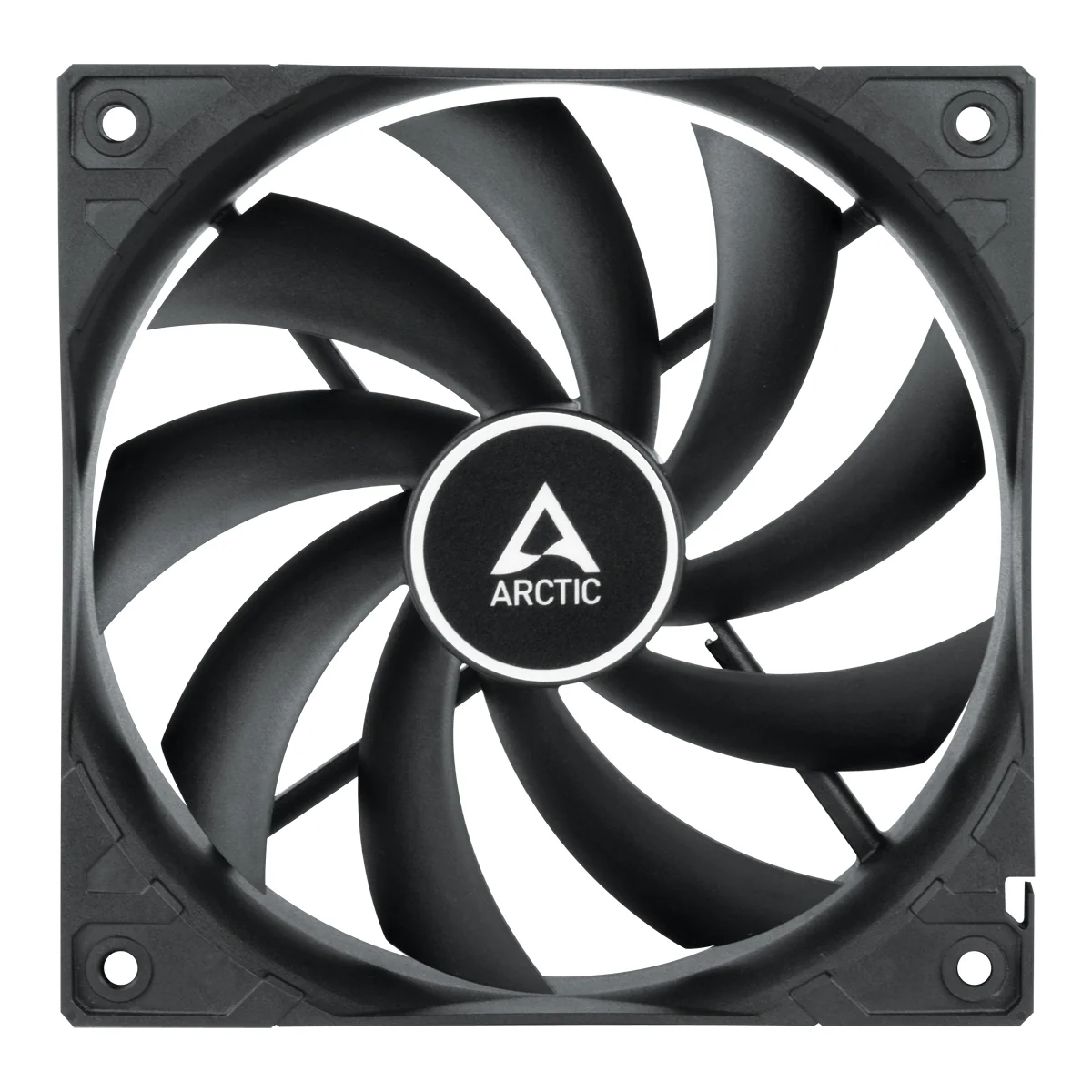

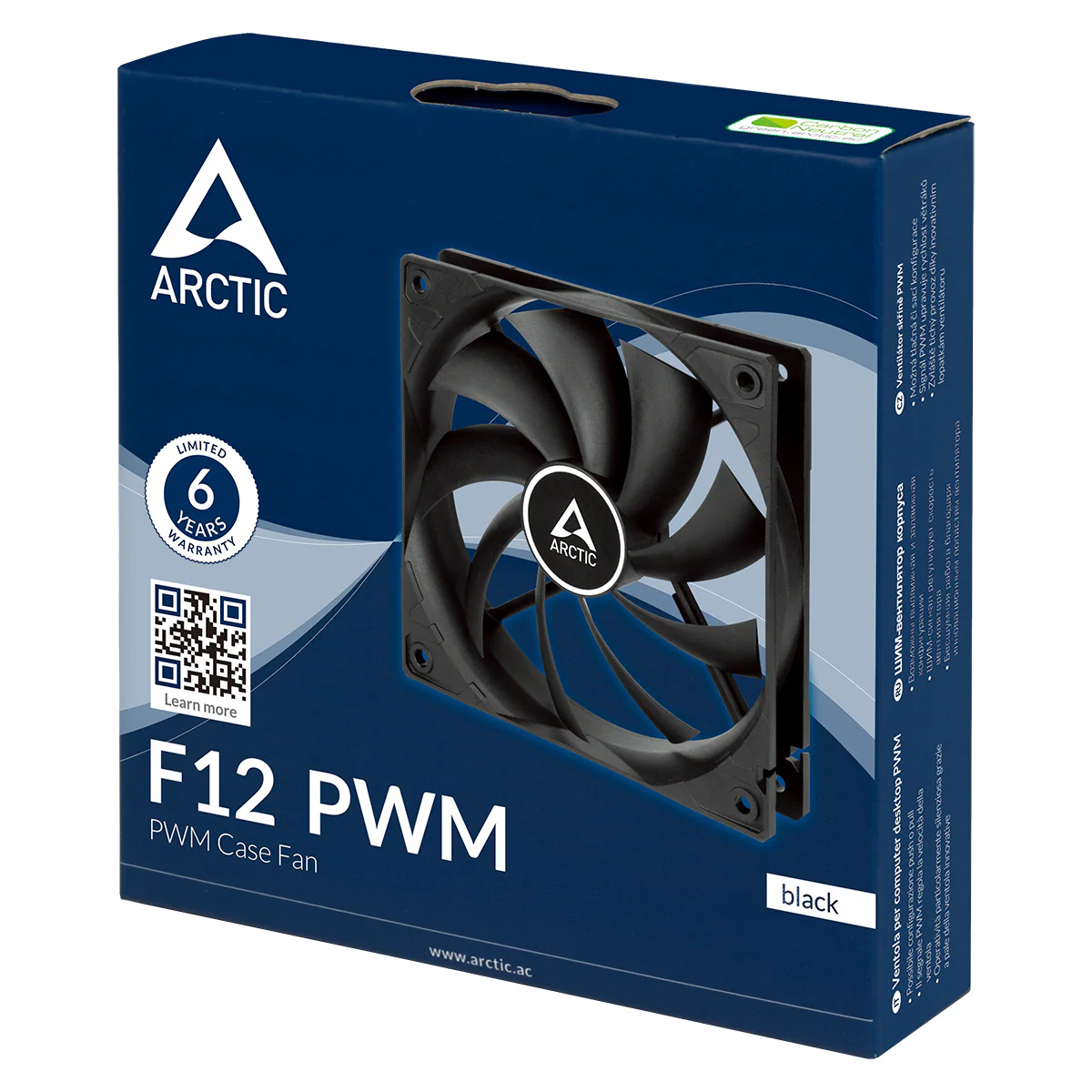

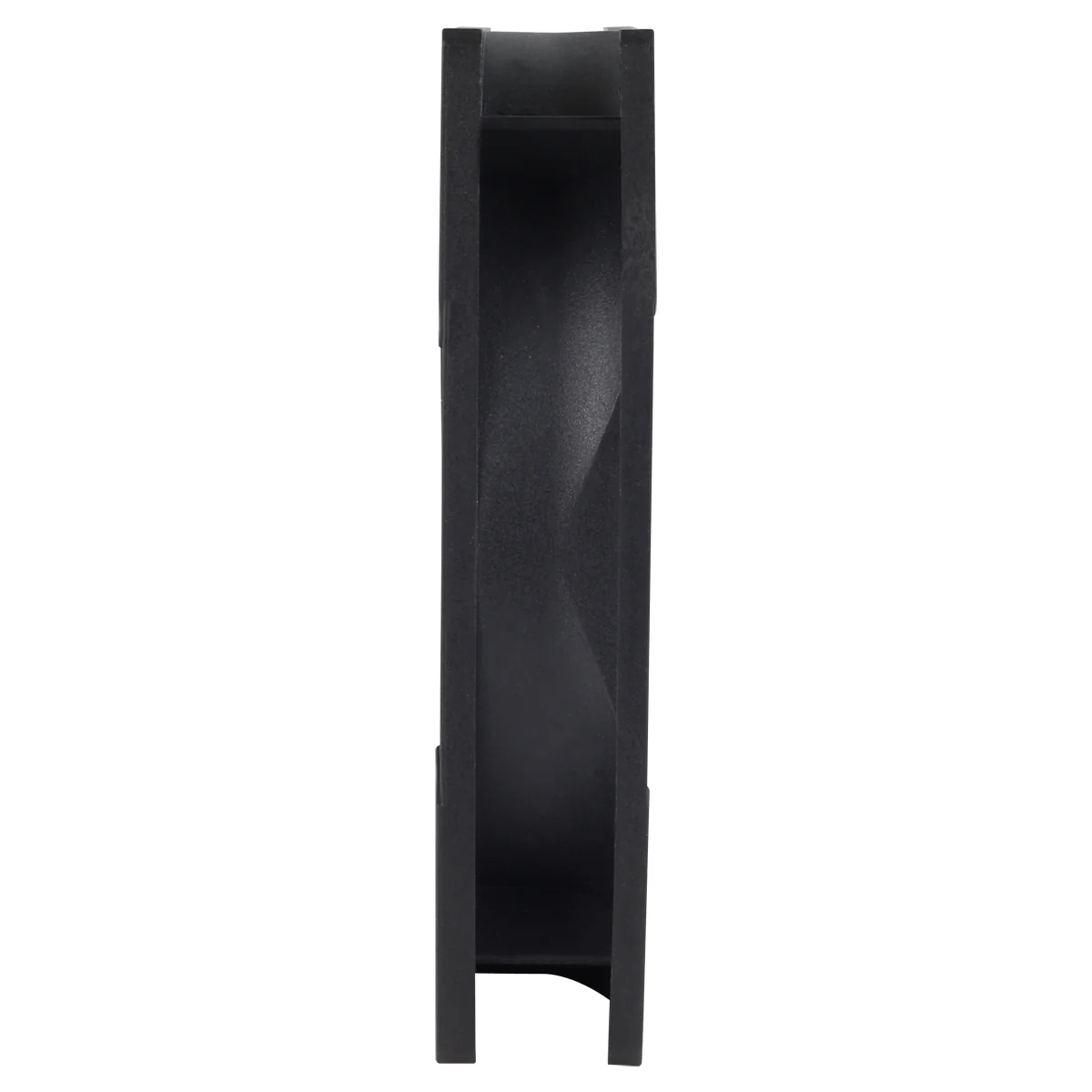

Arctic F12 PWM 120mm 5 Pack PWM Fan (Black) (ACFAN00145A)
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter.
Perfect Case Fan Regulation with PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.
Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life
Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
Two-way installation
- Blow warm air out of the case
- Draw cool air into your case
Specifications
| GENERAL SPECIFICATIONS | |
|---|---|
| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Net Weight | 105 g |
| Ambient Operating Temperature | 0–40 °C |
| Warranty | 6 Years |
| FAN SPECIFICATIONS | |
| Speed | 230–1350 rpm (PWM controlled), 0 rpm below 5% PWM |
| Airflow | 53 cfm | 90.1 m³/h |
| Static Pressure | 1.0 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing |
| Connector | 4-Pin Connector |
| Cable Length | 400 mm |
| ELECTRICAL CHARACTERISTICS | |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 5 V DC |
| Current | 0.21 A |
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter.
Perfect Case Fan Regulation with PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.
Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life
Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
Two-way installation
- Blow warm air out of the case
- Draw cool air into your case
Specifications
| GENERAL SPECIFICATIONS | |
|---|---|
| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Net Weight | 105 g |
| Ambient Operating Temperature | 0–40 °C |
| Warranty | 6 Years |
| FAN SPECIFICATIONS | |
| Speed | 230–1350 rpm (PWM controlled), 0 rpm below 5% PWM |
| Airflow | 53 cfm | 90.1 m³/h |
| Static Pressure | 1.0 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing |
| Connector | 4-Pin Connector |
| Cable Length | 400 mm |
| ELECTRICAL CHARACTERISTICS | |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 5 V DC |
| Current | 0.21 A |
Original: $18.70
-70%$18.70
$5.61Description
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter.
Perfect Case Fan Regulation with PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.
Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life
Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
Two-way installation
- Blow warm air out of the case
- Draw cool air into your case
Specifications
| GENERAL SPECIFICATIONS | |
|---|---|
| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Net Weight | 105 g |
| Ambient Operating Temperature | 0–40 °C |
| Warranty | 6 Years |
| FAN SPECIFICATIONS | |
| Speed | 230–1350 rpm (PWM controlled), 0 rpm below 5% PWM |
| Airflow | 53 cfm | 90.1 m³/h |
| Static Pressure | 1.0 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing |
| Connector | 4-Pin Connector |
| Cable Length | 400 mm |
| ELECTRICAL CHARACTERISTICS | |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 5 V DC |
| Current | 0.21 A |
