ARGB MID TOWER CASE

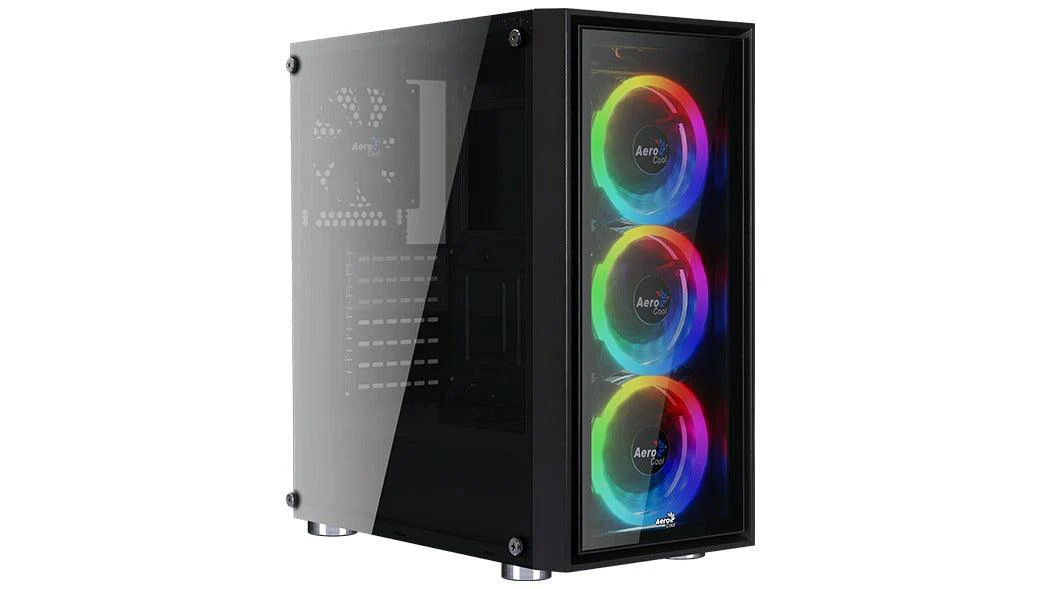

Masterfully crafted with full tempered glass side and front panels, the Quartz REVO properly showcases all that your rig has to offer. This high-performance mid tower case allows you to access 16.8 million colors using an Addressable RGB motherboard or control up to 14 preset lighting modes including 7 RGB flow and 7 static color modes via LED control switch.

• Access 16.8 million colors with Addressable RGB motherboard
• Full tempered glass front side and front panels to showcase the inside of your rig
• Supports air cooling in the front, top, and rear of the case to enhance cooling performance
• Supports liquid cooling: 1 x 360mm radiator in the front and 1 x 240mm radiator in the top
• Fully adjustable HDD cage allows you to install 60mm thick radiator or longer PSU
• Supports high-end graphics cards up to 366mm









 SPECIFICATIONS:

Model	Quartz REVO
Case Type	Mid Tower
Color	Black
Steel Thickness	>0.5mm
Motherboards	ATX/micro ATX/mini-ITX
Case Dimensions (Internal)	200 x 440 x 368.95mm (W x H x D)
Case Dimensions (Overall)	206.1 x 455 x 408mm (W x H x D)
5.25” Drive Bays	0
3.5” Drive Bay	2
2.5” Drive Bay	4
Expansion Slots	7
GPU Clearance	Supports GPU up to 341mm/366mm (without front fan)
CPU Cooler Clearance	Supports CPU up to 152mm
I/O Ports	USB3.0 x 1 | USB2.0 x 2 | HD Audio & Mic
Air Cooling	Front: 120mm x 3 (Includes Addressable RGB Fan x 3) Top: 120mm x 2 or 140mm x 2 (Optional) Rear: 120mm x 1 (Includes 120mm Fan)
Liquid Cooling	Front: 240/360mm Radiator (Optional) Top: 240mm Radiator (Optional)
Net Weight/Gross Weight	5.9kg (13 lbs.)/6.6kg (14.55 lbs.)
Power Supply	ATX PSU (Including cables, up to 185mm) (Optional)
